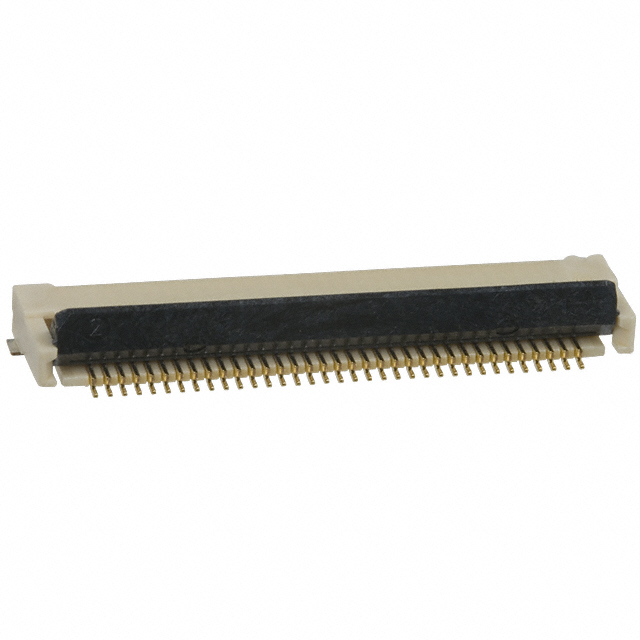

XF2M-3515-1A
ActiveOmron Electronics Inc-EMC Div
CONN FPC 35POS 0.5MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
XF2M-3515-1A
ActiveOmron Electronics Inc-EMC Div
CONN FPC 35POS 0.5MM R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XF2M-3515-1A |
|---|---|
| Actuator Color | Black |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Top and Bottom |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.9 µin |
| Contact Finish Thickness | 0.15 µm |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 0.5 A |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC |
| Height Above Board | 2.1 mm |
| Height Above Board | 0.083 " |
| Housing Color | Natural |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Locking Feature | Backlock, Rotary Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 35 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Termination | Solder |
| Voltage Rating | 50 V |
XF2M Series
| Part | Connector/Contact Type | Voltage Rating | Material Flammability Rating | Termination | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Current Rating (Amps) | Housing Color | Actuator Color | Number of Positions | Flat Flex Type | FFC, FCB Thickness | Actuator Material | Locking Feature | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Height Above Board | Height Above Board | Contact Finish | Cable End Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 38 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 30 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 20 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 45 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 35 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 40 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 12 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 10 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 54 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Omron Electronics Inc-EMC Div | Contacts Top and Bottom | 50 V | UL94 V-0 | Solder | 0.5 mm | 0.02 in | 5.9 µin | 0.15 µm | 20 | 0.5 A | Natural | Black | 33 | FPC | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Backlock Rotary Lock | Liquid Crystal Polymer (LCP) Halogen Free | -30 ░C | 85 °C | Surface Mount Right Angle | 2.1 mm | 0.083 " | Gold | Tapered | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.53 | |
| 10 | $ 2.30 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| Digi-Reel® | 1 | $ 2.53 | ||
| 10 | $ 2.30 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| Tape & Reel (TR) | 1500 | $ 1.42 | ||
| 3000 | $ 1.37 | |||
| 7500 | $ 1.31 | |||
Description
General part information
XF2M Series
35 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
