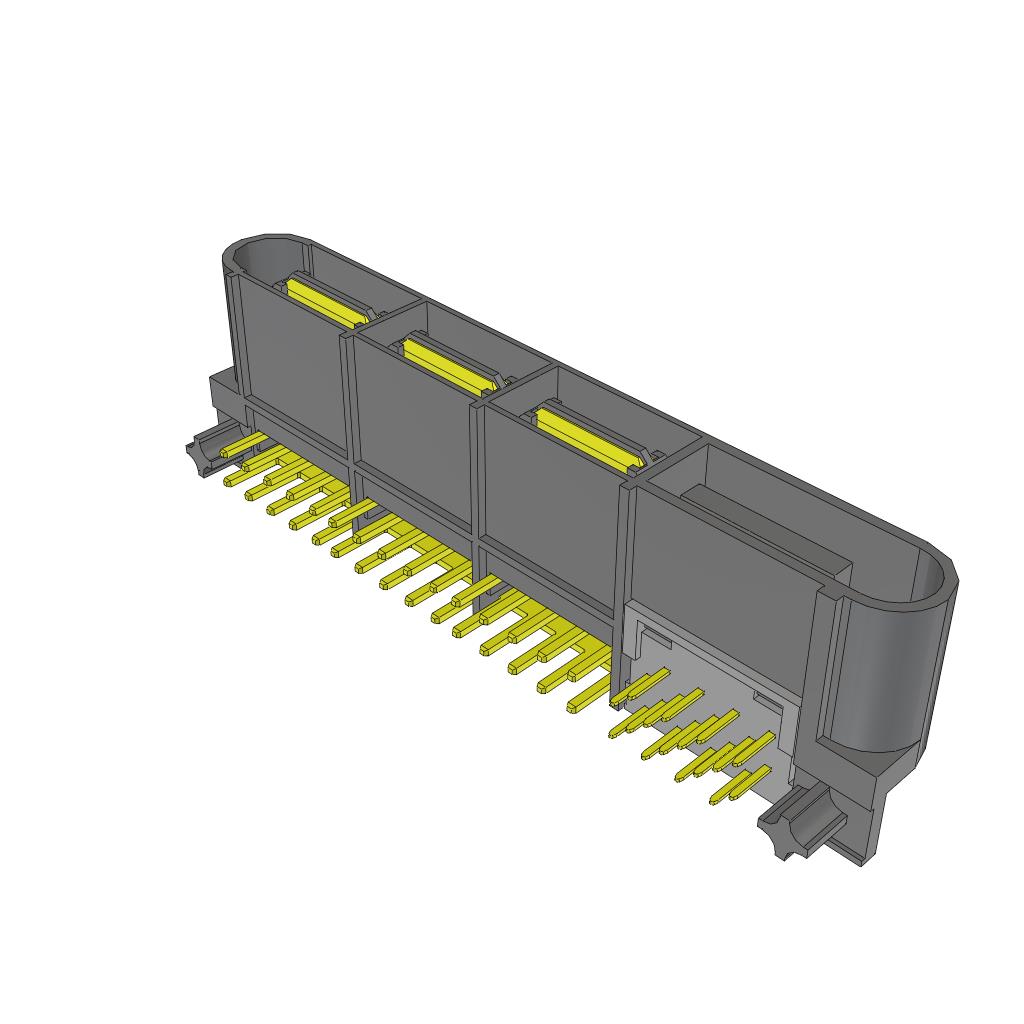

LPHT-06-16-L-RT1-GP

Active

Samtec Inc.

.050" EXTREME LPHPOWER 30 AMP S

Search across all available documentation for this part.

Active

Samtec Inc.

.050" EXTREME LPHPOWER 30 AMP S

Technical Specifications

Parameters and characteristics for this part

Specification	LPHT-06-16-L-RT1-GP

Color	Black
Connector Style	LPHPower
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Layout, Typical [custom]	16
Contact Layout, Typical [custom]	6
Features	Mating Guide, Board Guide
Mounting Type	Through Hole, Right Angle
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Rows	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Finish	Mounting Type	Features	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Termination	Color	Number of Positions	Voltage Rating	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]
Samtec Inc. LPHT-06-16-L-RT1-GP	2	16	6	Gold	Through Hole Right Angle	Board Guide Mating Guide	All	10 Áin	0.25 Ám	Solder	Black	22 positions	250 VDC	LPHPower	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	32	$ 10.48

General part information

22 Connector Plug, Center Strip Contacts Through Hole, Right Angle Black LPHPower
