1-881545-2

Active

TE Connectivity AMP Connectors

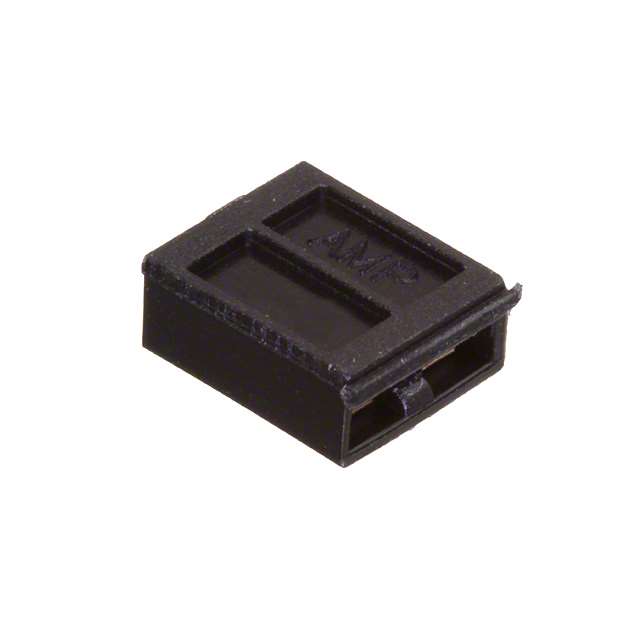

AMP SHUNT ASS'Y

Deep-Dive with AI

Search across all available documentation for this part.

1-881545-2

Active

TE Connectivity AMP Connectors

AMP SHUNT ASS'Y

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.45
		10	$ 0.38
		25	$ 0.35
		50	$ 0.33
		100	$ 0.31
		250	$ 0.29
		500	$ 0.27
		1000	$ 0.26
		2500	$ 0.24

Description

General part information

881545 Series

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-881545-2	881545 Series

Color	Black	Black, Natural, Red
Contact Finish	Gold	Gold, Tin
Contact Finish Thickness	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness	30 Áin	15 - 30 Áin
Current Rating (Amps)	3 A	3 A
Gender	Female Sockets	Female Sockets
Height	-	10.9 mm
Height	-	0.429 "
Height [diameter]	0.228 in	0.228 in
Height [diameter]	5.8 mm	5.8 mm
Housing Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2	1 x 2
Number of Positions or Pins (Grid) [custom]	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Type	Open Top	Grip, Open Top

881545 Series

SHUNT LP W/HANDLE 2 POS 30AU

Part	Gender	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish	Current Rating (Amps)	Pitch [x]	Pitch [x]	Height [z]	Height [z]	Color	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Type	Height [diameter]	Height [diameter]
TE Connectivity AMP Connectors 881545-2	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Black	UL94 V-0	0.76 Ám	30 Áin	Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 881545-5	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Natural	UL94 V-0	0.38 µm	15 µin	Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 881545-1	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Black	UL94 V-0	0.38 µm	15 µin	Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 1-881545-4	Female Sockets	1 x 2	2	Tin	3 A	2.54 mm	0.1 in			Black	UL94 V-0			Thermoplastic, Glass Filled	Open Top	0.228 in	5.8 mm
TE Connectivity AMP Connectors 2-881545-2	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Red	UL94 V-0	0.76 Ám	30 Áin	Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 1-881545-2	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in			Black	UL94 V-0	0.76 Ám	30 Áin	Thermoplastic, Glass Filled	Open Top	0.228 in	5.8 mm
TE Connectivity AMP Connectors 4-881545-2	Female Sockets	1 x 2	2	Tin	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Black	UL94 V-0			Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 1-881545-1	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in			Black	UL94 V-0	0.38 µm	15 µin	Thermoplastic, Glass Filled	Open Top	0.228 in	5.8 mm
