881545-5

Active

TE Connectivity AMP Connectors

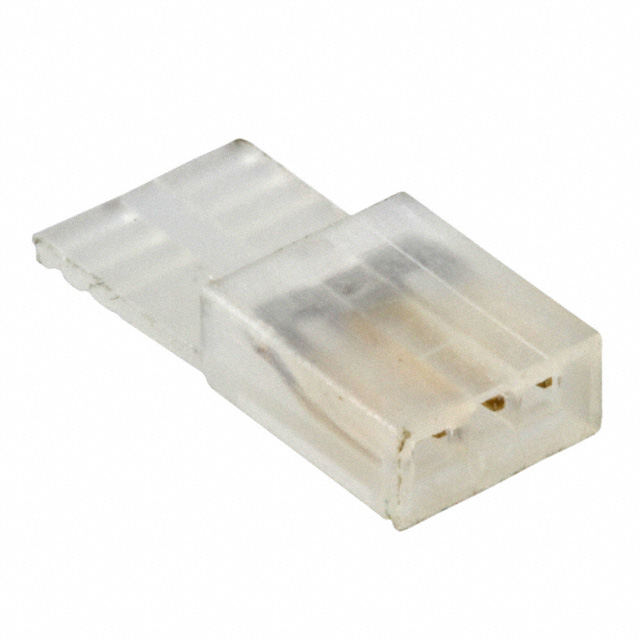

AMP SHUNT ASS'Y

Deep-Dive with AI

Search across all available documentation for this part.

881545-5

Active

TE Connectivity AMP Connectors

AMP SHUNT ASS'Y

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	881545-5	881545 Series

Color	Natural	Black, Natural, Red
Contact Finish	Gold	Gold, Tin
Contact Finish Thickness	15 µin	15 - 30 Áin
Contact Finish Thickness	0.38 µm	0.38 - 0.76 Ám
Current Rating (Amps)	3 A	3 A
Gender	Female Sockets	Female Sockets
Height	-	0.228 in
Height	-	5.8 mm
Height [z]	10.9 mm	10.9 mm
Height [z]	0.429 "	0.429 "
Housing Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2	1 x 2
Number of Positions or Pins (Grid) [custom]	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Type	Grip, Open Top	Grip, Open Top

881545 Series

SHUNT LP W/HANDLE 2 POS 30AU

Part	Gender	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish	Current Rating (Amps)	Pitch [x]	Pitch [x]	Height [z]	Height [z]	Color	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Housing Material	Type	Height [diameter]	Height [diameter]
TE Connectivity AMP Connectors 881545-2	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Black	UL94 V-0	0.76 Ám	30 Áin	Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 881545-5	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Natural	UL94 V-0	0.38 µm	15 µin	Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 881545-1	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Black	UL94 V-0	0.38 µm	15 µin	Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 1-881545-4	Female Sockets	1 x 2	2	Tin	3 A	2.54 mm	0.1 in			Black	UL94 V-0			Thermoplastic, Glass Filled	Open Top	0.228 in	5.8 mm
TE Connectivity AMP Connectors 2-881545-2	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Red	UL94 V-0	0.76 Ám	30 Áin	Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 1-881545-2	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in			Black	UL94 V-0	0.76 Ám	30 Áin	Thermoplastic, Glass Filled	Open Top	0.228 in	5.8 mm
TE Connectivity AMP Connectors 4-881545-2	Female Sockets	1 x 2	2	Tin	3 A	2.54 mm	0.1 in	10.9 mm	0.429 "	Black	UL94 V-0			Thermoplastic, Glass Filled	Grip, Open Top
TE Connectivity AMP Connectors 1-881545-1	Female Sockets	1 x 2	2	Gold	3 A	2.54 mm	0.1 in			Black	UL94 V-0	0.38 µm	15 µin	Thermoplastic, Glass Filled	Open Top	0.228 in	5.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.40
		10	$ 0.33
		25	$ 0.31
		50	$ 0.29
		100	$ 0.27
		250	$ 0.25
		500	$ 0.24
		1000	$ 0.23
		2500	$ 0.21

Description

General part information

881545 Series

2 (1 x 2) Position Shunt Connector Natural Open Top, Grip 0.100" (2.54mm) Gold

Documents

Technical documentation and resources

No documents available
