1411181

Active

Phoenix Contact

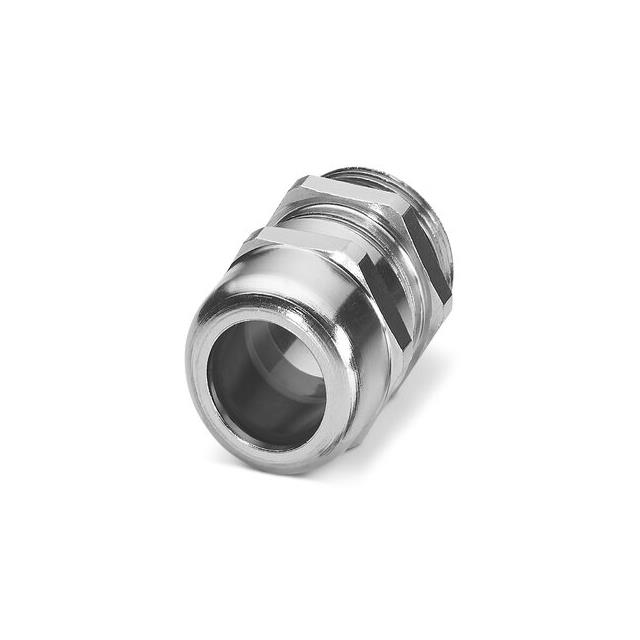

CABLE GLAND 34-44MM PG48 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 34-44MM PG48 BRASS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1411181	G-INS-PG48 Series

Color	Silver	Silver, Gray, Black
Includes	O-Ring, Seal	O-Ring, Seal
Ingress Protection	IP66, IP68, IP69	IP66, IP68, IP69, IP68 - Dust Tight, Waterproof, IP66/IP68
Material	Brass, Nickel Plated	Brass, Nickel Plated, Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max]	44 mm	44 mm
Outside Cable Diameter (Max) [Max]	1.732 in	1.732 in
Outside Cable Diameter (Min) [Min] [diameter]	1.339 in	1.339 in
Outside Cable Diameter (Min) [Min] [diameter]	34 mm	34 mm
Thread Length	14 mm	14 mm
Thread Length	0.551 in	0.551 in
Thread Size	PG48	PG48
Type	Cable Gland	Cable Gland

CABLE GLAND 34-44MM PG48 BRASS

Part	Thread Length	Thread Length	Material	Color	Thread Size	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 1411181	14 mm	0.551 in	Brass, Nickel Plated	Silver	PG48	Cable Gland	1.339 in	34 mm	O-Ring, Seal	44 mm	1.732 in	IP66, IP68, IP69	100 °C	-40 °C
Phoenix Contact 1424494	14 mm	0.551 in	Polyamide (PA), Nylon	Gray	PG48	Cable Gland	1.339 in	34 mm	Seal	44 mm	1.732 in	IP68 - Dust Tight, Waterproof	100 °C	-40 °C
Phoenix Contact 1424504	14 mm	0.551 in	Polyamide (PA), Nylon	Black	PG48	Cable Gland	1.339 in	34 mm	Seal	44 mm	1.732 in	IP68 - Dust Tight, Waterproof	100 °C	-40 °C
Phoenix Contact 1411150	14 mm	0.551 in	Polyamide (PA), Nylon	Gray	PG48	Cable Gland	1.339 in	34 mm	Seal	44 mm	1.732 in	IP66/IP68	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.37

General part information

Cable Gland Brass, Nickel Plated PG48 Silver
