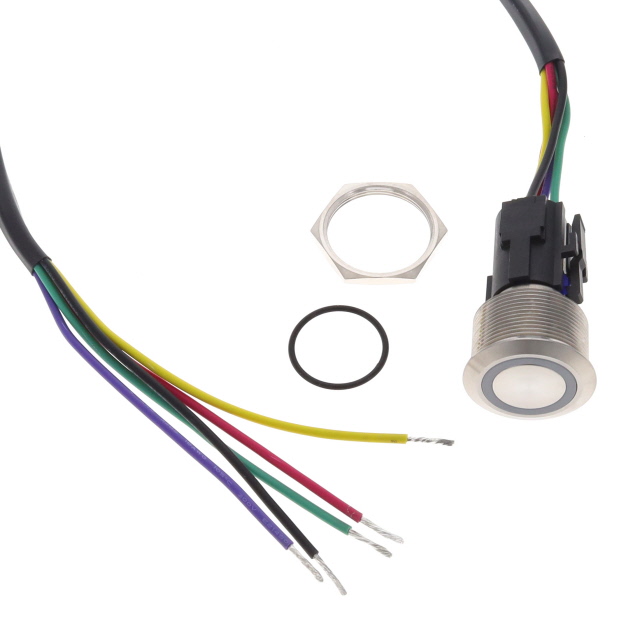

ULV8FP3SS311

Active

E-Switch

SWITCH PB SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

ULV8FP3SS311

Active

E-Switch

SWITCH PB SPDT 3A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.18
		10	$ 17.42
		30	$ 16.23
		50	$ 15.70
		100	$ 15.02
		250	$ 14.15
		500	$ 13.53

Description

General part information

ULV8 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ULV8FP3SS311	ULV8 Series

Accessory Type	-	O-Ring
Actuator Marking	No Marking	No Marking, STOP
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	DPDT, SPDT, DPST-NC
Color - Actuator/Cap	Silver	Silver, Black
Current Rating (Amps)	3 A	3 A
Electrical Life	50000 Cycles	50000 Cycles
For Use With/Related Products	-	ULV8 Series
Illumination Type, Color	Red, LED	LED, Blue, Green/Red, Red, Green, White
Illumination Voltage (Nominal)	3 VDC	3 - 24 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles	500000 - 1000000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-20 C	-20 C
Panel Cutout Dimensions [diameter]	25.2 mm	25 - 25.2 mm
Switch Function	On-On	On-Mom, On-On
Termination Style	-	0.11 in
Termination Style	-	Quick Connect, Solder, Wire Leads, Solder Lug, PC Pin
Termination Style	-	2.8 mm
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V	125 - 250 V

ULV8 Series

SWITCH PUSHBUTTON DPDT 3A 250V

Part	Illumination Voltage (Nominal)	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Marking	Switch Function	Illumination Type, Color	Mounting Type	Mechanical Life	Termination Style	Termination Style	Termination Style	Circuit	Type	Actuator Type	Current Rating (Amps)	Ingress Protection	Accessory Type	For Use With/Related Products
E-Switch ULV8F2HSS341	3 VDC	Silver	55 °C	-20 C	50000 Cycles	250 V	25.2 mm	No Marking	On-Mom	Blue, LED	Panel Mount, Front	1000000 Cycles	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
E-Switch ULV8F2BSS3G4	12 VDC	Silver	55 °C	-20 C	50000 Cycles	125 V	25 mm		On-Mom	Green/Red, LED	Panel Mount, Front	1000000 Cycles	0.11 in	Quick Connect, Solder	2.8 mm	SPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
E-Switch ULV8F23SS311	3 VDC	Silver	55 °C	-20 C	50000 Cycles	250 V	25.2 mm	No Marking	On-On	LED, Red	Panel Mount, Front	500000 Cycles	0.11 in	Quick Connect, Solder	2.8 mm	SPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
E-Switch ULV8F2311333	6 V	Black	55 °C	-20 C	50000 Cycles	250 V	25.2 mm	No Marking	On-On	Green, LED	Panel Mount, Front	500000 Cycles	0.11 in	Quick Connect, Solder	2.8 mm	SPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
E-Switch ULV8F23SSG334	12 VDC	Silver	55 °C	-20 C	50000 Cycles	125 V	25 mm		On-On	Green, LED	Panel Mount, Front	500000 Cycles	0.11 in	Quick Connect, Solder	2.8 mm	SPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
E-Switch ULV8FW3SS311	3 VDC	Silver	55 °C	-20 C	50000 Cycles	250 V	25.2 mm	No Marking	On-On	LED, Red	Panel Mount, Front	500000 Cycles		Wire Leads		DPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
E-Switch ULV8-ORING																					O-Ring	ULV8 Series
E-Switch ULV8FP3SS311	3 VDC	Silver	55 °C	-20 C	50000 Cycles	125 V	25.2 mm	No Marking	On-On	LED, Red	Panel Mount, Front	500000 Cycles				SPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
E-Switch ULV8F2GSS341	3 VDC	Silver	55 °C	-20 C	50000 Cycles	250 V	25.2 mm	No Marking	On-On	Blue, LED	Panel Mount, Front	500000 Cycles	0.11 in	Quick Connect, Solder	2.8 mm	DPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
E-Switch ULV8F2BSLL34L20	12 VDC	Silver	55 °C	-20 C	50000 Cycles	125 V	25 mm	No Marking	On-Mom	Green, LED	Panel Mount, Front	1000000 Cycles		Solder Lug		SPDT	Anti-Vandal, Illuminated	Button, Flush, Round	3 A	IP67 - Dust Tight, Waterproof
