ULV8F2BSLL34L20

Active

E-Switch

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

ULV8F2BSLL34L20

Active

E-Switch

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

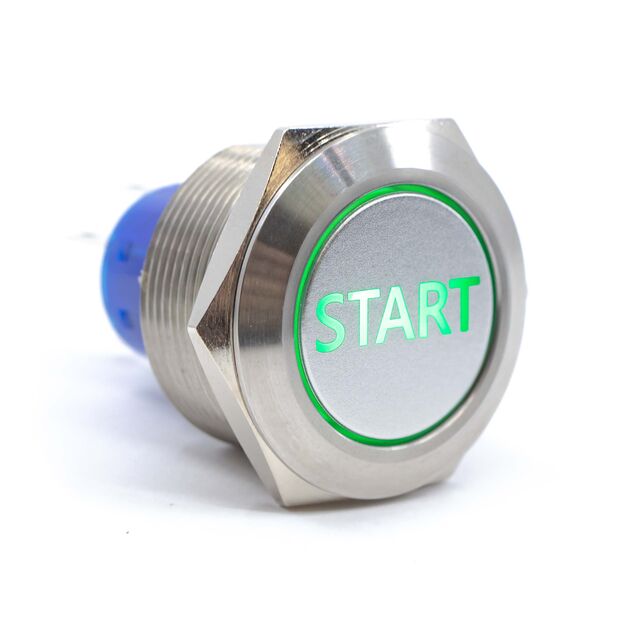

Specification	ULV8F2BSLL34L20

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	25 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

ULV8 Series

Part	Termination Style	Termination Style	Termination Style	Electrical Life	Circuit	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Illumination Type, Color	Mechanical Life	Switch Function	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Actuator Type	Ingress Protection	Type	Mounting Type	Color - Actuator/Cap	Actuator Marking
E-Switch ULV8F2BSS3G4	0.11 in	Quick Connect Solder	2.8 mm	50000 Cycles	SPDT	125 V	55 °C	-20 C	12 VDC	Green/Red LED	1000000 Cycles	On-Mom	25 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Silver
E-Switch ULV8F2311333	0.11 in	Quick Connect Solder	2.8 mm	50000 Cycles	SPDT	250 V	55 °C	-20 C	6 V	Green LED	500000 Cycles	On-On	25.2 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Black	No Marking
E-Switch ULV8F2GSS341	0.11 in	Quick Connect Solder	2.8 mm	50000 Cycles	DPDT	250 V	55 °C	-20 C	3 VDC	Blue LED	500000 Cycles	On-On	25.2 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Silver	No Marking
E-Switch ULV8F2BSLL34L20		Solder Lug		50000 Cycles	SPDT	125 V	55 °C	-20 C	12 VDC	Green LED	1000000 Cycles	On-Mom	25 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Silver	No Marking
E-Switch ULV8F2HSS341	0.11 in	Quick Connect Solder	2.8 mm	50000 Cycles	DPDT	250 V	55 °C	-20 C	3 VDC	Blue LED	1000000 Cycles	On-Mom	25.2 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Silver	No Marking
E-Switch ULV8F23SS305	0.11 in	Quick Connect Solder	2.8 mm	50000 Cycles	SPDT	125 V	55 °C	-20 C	24 V	LED White	500000 Cycles	On-On	25 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Silver
E-Switch ULV8F23SSG334	0.11 in	Quick Connect Solder	2.8 mm	50000 Cycles	SPDT	125 V	55 °C	-20 C	12 VDC	Green LED	500000 Cycles	On-On	25 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Silver
E-Switch ULV8F2B11301	0.11 in	Quick Connect Solder	2.8 mm	50000 Cycles	SPDT	125 V	55 °C	-20 C	3 VDC	LED White	1000000 Cycles	On-Mom	25 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Black
E-Switch ULV8F23SS311	0.11 in	Quick Connect Solder	2.8 mm	50000 Cycles	SPDT	250 V	55 °C	-20 C	3 VDC	LED Red	500000 Cycles	On-On	25.2 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Silver	No Marking
E-Switch ULV8FW3SS311		Wire Leads		50000 Cycles	DPDT	250 V	55 °C	-20 C	3 VDC	LED Red	500000 Cycles	On-On	25.2 mm	3 A	Button Flush Round	IP67 - Dust Tight Waterproof	Anti-Vandal Illuminated	Panel Mount Front	Silver	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.65
		20	$ 14.57
		40	$ 13.94
		60	$ 13.58
		100	$ 13.14
		260	$ 12.35
		500	$ 11.84

Description

General part information

ULV8 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
