3014-60-0

Active

Pomona Electronics

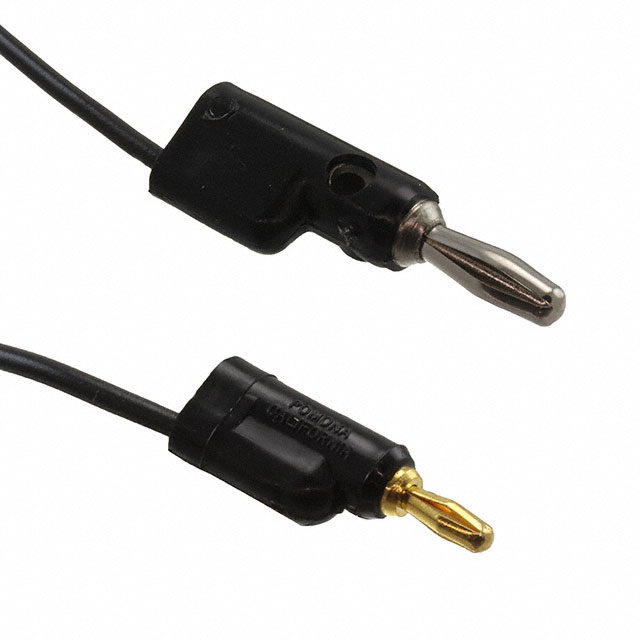

TEST LEAD BANANA TO BANANA 60"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD BANANA TO BANANA 60"

Technical Specifications

Parameters and characteristics for this part

Specification	3014-60-0

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Miniature Banana Plug, Single, Stackable
Cable Length	1524 mm
Cable Length	5 ft
Configuration	Banana to Banana
Contents	1 Lead, Black
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multistacking Banana Plug, Front Stacking Miniature Banana
Type	Patch Cord
Voltage - Rated	3 kV
Voltage - Rated	3000 V
Wire Gauge	20 AWG

Part	Current Rating (Amps)	Material - Insulation	Type	1st Connector	Cable Length	Cable Length	Voltage - Rated	Voltage - Rated	Wire Gauge	Contents [custom]	Contents	2nd Connector	Stacking Method	Configuration
Pomona Electronics 3014-60-2	5 A	Poly-Vinyl Chloride (PVC)	Patch Cord	Banana Plug Single Stackable	1524 mm	5 ft	3 kV	3000 V	20 AWG	1	Red	Miniature Banana Plug Single Stackable	Front Stacking Miniature Banana Multistacking Banana Plug	Banana to Banana
Pomona Electronics 3014-60-0	5 A	Poly-Vinyl Chloride (PVC)	Patch Cord	Banana Plug Single Stackable	1524 mm	5 ft	3 kV	3000 V	20 AWG		1 Lead Black	Miniature Banana Plug Single Stackable	Front Stacking Miniature Banana Multistacking Banana Plug	Banana to Banana

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60.0" (1524.00mm) Banana Plug, Single, Stackable To Miniature Banana Plug, Single, Stackable Patch Cord 3000VDC (3kV)
