PAJ.M1.2TL.LC52NZ
ActiveLEMO

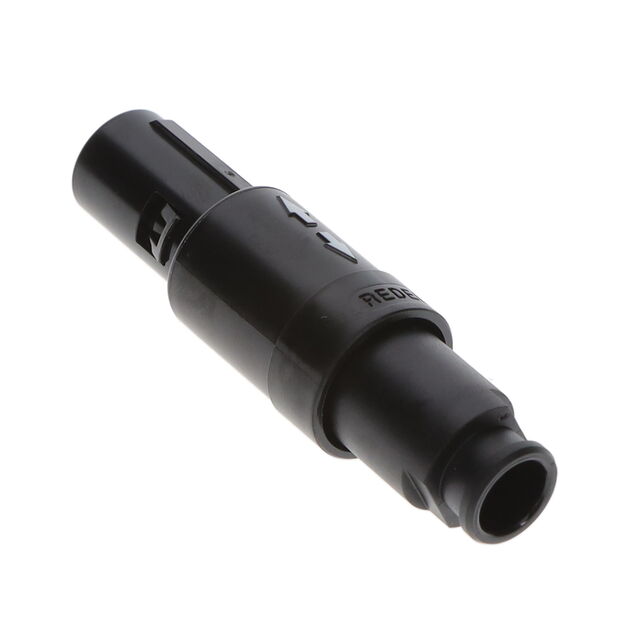

CONN PLUG FMALE 12P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAJ.M1.2TL.LC52NZ
ActiveLEMO
CONN PLUG FMALE 12P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PAJ.M1.2TL.LC52NZ | PAJ.M1 Series |
|---|---|---|
| Applications | Medical | Medical |
| Backshell Material, Plating | Polyetherimide (PEI) | Polysulfone (PSU), Polyetherimide (PEI) |
| Cable Opening | - | 0.209 - 0.256 in |
| Cable Opening | - | 5.3 - 6.5 mm |
| Cable Opening | - | 2.7 mm |
| Cable Opening | - | 0.154 in |
| Cable Opening | - | 3.9 mm |
| Cable Opening | - | 0.106 in |
| Cable Opening [Max] [custom] | 0.205 in | 0.205 in |
| Cable Opening [Max] [custom] | 5.2 mm | 5.2 mm |
| Cable Opening [Min] [custom] | 0.157 in | 0.157 in |
| Cable Opening [Min] [custom] | 4 mm | 4 mm |
| Color | Black | Green, Gray, Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 7 A | 2 - 7 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 12 | 10 - 14 |
| Operating Temperature [Max] | 170 °C | 150 - 170 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | J | J |
| Primary Material | Plastic | Plastic |
| Shell Material | Polyetherimide (PEI) | Polysulfone (PSU), Polyetherimide (PEI) |
| Shell Size - Insert | M12 | M10, M12, M14 |
| Shielding | Unshielded | Unshielded |
PAJ.M1 Series
CONN PLUG FMALE 10P SOLDER CUP
| Part | Features | Fastening Type | Contact Finish - Mating | Ingress Protection | Insert Material | Shell Size - Insert | Mounting Type | Number of Positions | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Shell Material | Connector Type | Color | Shielding | Applications | Primary Material | Orientation | Current Rating (Amps) | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO PAJ.M1.0GL.LC52V | Backshell | Detent Lock, Push-Pull | Gold | IP50 | Polyetheretherketone (PEEK) | M10 | Free Hanging (In-Line) | 10 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Polysulfone (PSU) | Female Sockets, Plug | Gray, Green | Unshielded | Medical | Plastic | J | 3 A | Polysulfone (PSU) | 150 °C | -50 °C | ||||||
LEMO PAJ.M1.4GL.U0818 | Medical | ||||||||||||||||||||||||||||
Backshell | Detent Lock, Push-Pull | Gold | IP50 | Polyetheretherketone (PEEK) | M12 | Free Hanging (In-Line) | 12 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Polyetherimide (PEI) | Female Sockets, Plug | Black | Unshielded | Medical | Plastic | J | 7 A | Polyetherimide (PEI) | 170 °C | -50 °C | |||||||
LEMO PAJ.M1.4GL.LC65Z | Backshell | Detent Lock, Push-Pull | Gold | IP50 | Polyetheretherketone (PEEK) | M14 | Free Hanging (In-Line) | 14 | Polysulfone (PSU) | Female Sockets, Plug | Gray | Unshielded | Medical | Plastic | J | 2 A | Polysulfone (PSU) | 150 °C | -50 °C | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | ||||||||
LEMO PAJ.M1.0GL.LC52G | Backshell | Detent Lock, Push-Pull | Gold | IP50 | Polyetheretherketone (PEEK) | M10 | Free Hanging (In-Line) | 10 | 0.157 in | 0.205 in | 4 mm | 5.2 mm | Polysulfone (PSU) | Female Sockets, Plug | Gray | Unshielded | Medical | Plastic | J | 3 A | Polysulfone (PSU) | 150 °C | -50 °C | ||||||
Backshell | Detent Lock, Push-Pull | Gold | IP50 | Polyetheretherketone (PEEK) | M10 | Free Hanging (In-Line) | 10 | Polysulfone (PSU) | Female Sockets, Plug | Gray | Unshielded | Medical | Plastic | J | 3 A | Polysulfone (PSU) | 150 °C | -50 °C | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm | |||||||||
LEMO PAJ.M1.0GL.LC39G | Backshell | Detent Lock, Push-Pull | Gold | IP50 | Polyetheretherketone (PEEK) | M10 | Free Hanging (In-Line) | 10 | Polysulfone (PSU) | Female Sockets, Plug | Gray | Unshielded | Medical | Plastic | J | 3 A | Polysulfone (PSU) | 150 °C | -50 °C | 2.7 mm | 0.154 in | 3.9 mm | 0.106 in | ||||||
LEMO PAJ.M1.4GL.LC65G | Backshell | Detent Lock, Push-Pull | Gold | IP50 | Polyetheretherketone (PEEK) | M14 | Free Hanging (In-Line) | 14 | Polysulfone (PSU) | Female Sockets, Plug | Gray | Unshielded | Medical | Plastic | J | 2 A | Polysulfone (PSU) | 150 °C | -50 °C | 0.209 in, 0.256 in | 5.3 mm, 6.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 46.65 | |
| 10 | $ 42.81 | |||
| 25 | $ 41.16 | |||
| 50 | $ 39.79 | |||
| 100 | $ 37.60 | |||
| 250 | $ 36.50 | |||
Description
General part information
PAJ.M1 Series
12 Position Circular Connector Plug, Female Sockets Solder Cup
