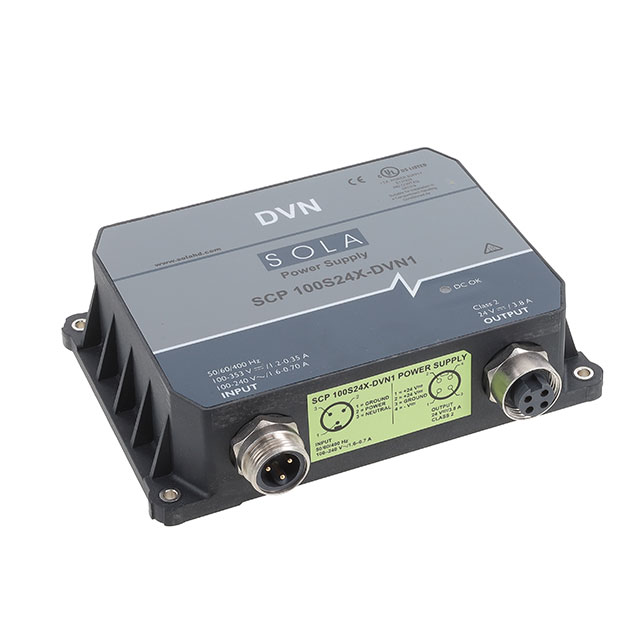

SCP100S24X-DVN1
ActiveSolaHD
100W 24V EXT.ENVIR.DCPS DEVNET
Deep-Dive with AI
Search across all available documentation for this part.
SCP100S24X-DVN1
ActiveSolaHD
100W 24V EXT.ENVIR.DCPS DEVNET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCP100S24X-DVN1 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output 1 | 3.8 A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [x] | 7 " |
| Size / Dimension [y] | 45.7 mm |
| Size / Dimension [y] | 1.8 in |
| Size / Dimension [z] | 4.73 in |
| Size / Dimension [z] | 120.1 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 353 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 100 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 476.96 | |
| 5 | $ 461.57 | |||
| 12 | $ 446.19 | |||
Description
General part information
SCP100 Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 100 ~ 353 VDC Input
Documents
Technical documentation and resources
No documents available
