845-059-521-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 59POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-059-521-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 59POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-059-521-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 59 |
| Number of Positions/Bay/Row [custom] | 59 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-059 Series
...
| Part | Color | Number of Rows | Mounting Type | Termination Rows | Gender | Number of Positions/Bay/Row [custom] | Contact Material | Number of Positions | Card Type | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Finish | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Material - Insulation | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | 1 | Through Hole | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Diallyl Phthalate (DAP) | ||
EDAC Inc. | Green | 1 | Through Hole | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | ||
EDAC Inc. | Green | 1 | Through Hole | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Green | 1 | Through Hole | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Diallyl Phthalate (DAP) | ||
EDAC Inc. | Green | 1 | Through Hole | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Diallyl Phthalate (DAP) | ||
EDAC Inc. | Green | 1 | Through Hole | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Green | 1 | Through Hole | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Diallyl Phthalate (DAP) | ||
EDAC Inc. | Green | 1 | Through Hole Right Angle | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | 1 | Through Hole Right Angle | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | Diallyl Phthalate (DAP) | 3.25 mm | 0.128 in | |||
EDAC Inc. | Green | 1 | Through Hole | 1 | Female | 59 | Copper Alloy | 59 | Non Specified - Single Edge | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 125 °C | -40 °C | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Solder | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Diallyl Phthalate (DAP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 142.11 | |
Description
General part information
845-059 Series

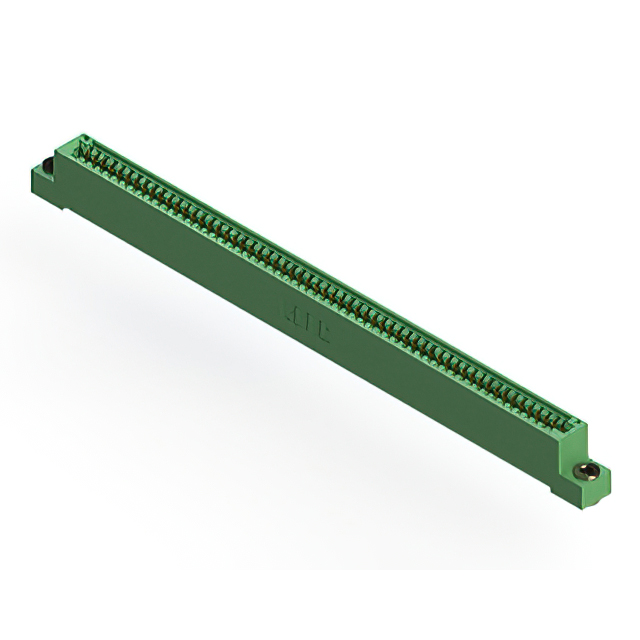

59 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
