790319-3

Active

TE Connectivity AMP Connectors

CONN QC RCPT 10-12AWG 0.250

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 10-12AWG 0.250

Technical Specifications

Parameters and characteristics for this part

CONN QC RCPT 10-12AWG 0.250

Part	Length - Overall [x]	Length - Overall [x]	Termination	Contact Material	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Gender	Contact Finish	Mounting Type	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Insulation
TE Connectivity AMP Connectors 790319-3	0.874 in	22.2 mm	Crimp	Brass	5.1 mm	0.201 in	0.134 in	3.4 mm	Female	Tin	Free Hanging (In-Line)	0.032 in	0.81 mm	6.35 mm	0.25 in	12 AWG	10 AWG	Standard	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

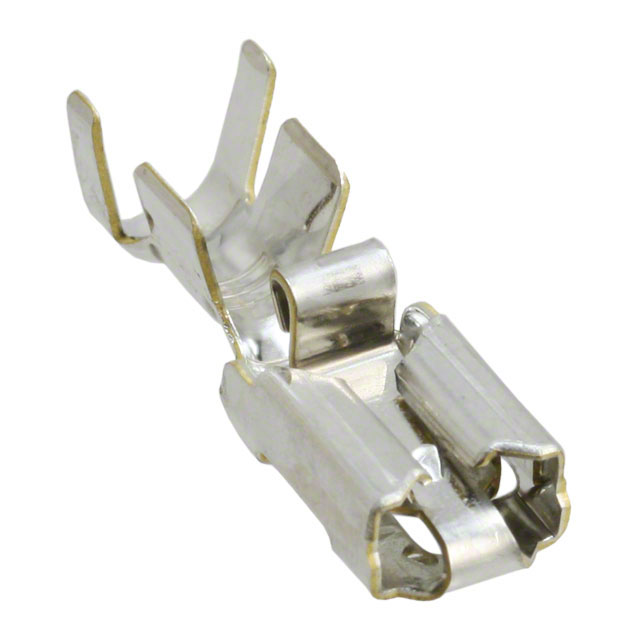

0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Insulated
