AHES3192

Active

Panasonic Electric Works

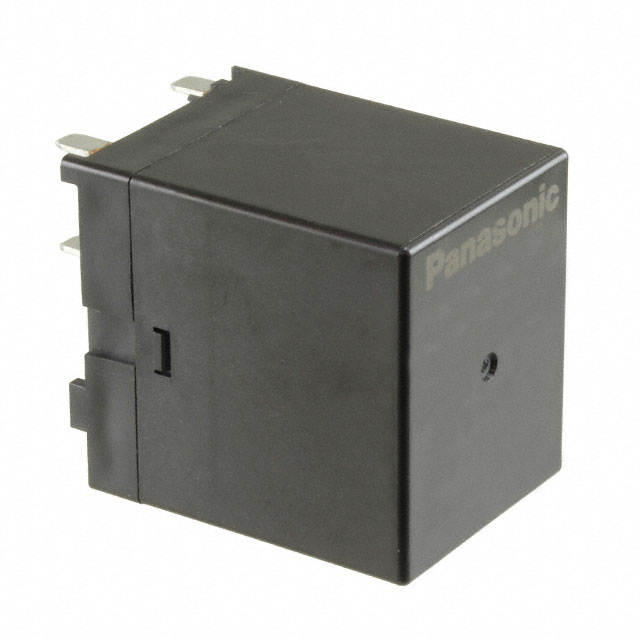

RELAY GEN PURPOSE DPST 35A 24V

Deep-Dive with AI

Search across all available documentation for this part.

AHES3192

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPST 35A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHES3192

Approval Agency	CQC, VDE, cURus
Coil Current	78 mA
Coil Insulation	Class F
Coil Resistance	306 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPST-NO (2 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	35 A
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	1.2 VDC
Operate Time	30 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	277 VAC
Termination Style	PC Pin

AHES31 Series

Part	Relay Type	Must Release Voltage	Termination Style	Coil Type	Operate Time	Release Time	Mounting Type	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Rating (Current)	Seal Rating	Must Operate Voltage	Contact Form	Switching Voltage	Coil Insulation	Coil Resistance	Approval Agency	Coil Voltage	Load - Max Switching
Panasonic Electric Works AHES3191	General Purpose	0.6 VDC	PC Pin	Non Latching	30 ms	10 ms	Through Hole	157 mA	-40 °C	55 °C	Silver Tin Oxide (AgSnO)	35 A	Sealed - Flux Protection	9 VDC	DPST-NO (2 Form A)	277 VAC	Class F	76.6 Ohms	CQC cURus VDE	12 VDC
Panasonic Electric Works AHES3192	General Purpose	1.2 VDC	PC Pin	Non Latching	30 ms	10 ms	Through Hole	78 mA	-40 °C	55 °C	Silver Tin Oxide (AgSnO)	35 A	Sealed - Flux Protection	18 VDC	DPST-NO (2 Form A)	277 VAC	Class F	306 Ohms	CQC cURus VDE	24 VDC
Panasonic Electric Works AHES3192Q	General Purpose	1.2 VDC	PC Pin	Non Latching	30 ms	10 ms	Through Hole	78 mA	-40 °C	70 °C	Silver Tin Oxide (AgSnO)	40 A	Sealed - Flux Protection	18 VDC	DPST-NO (2 Form A)	110 VDC 480 VAC		306.4 Ohms	CQC cURus VDE	24 VDC	4400 W 19200 VA
Panasonic Electric Works AHES3190	General Purpose	0.3 VDC	PC Pin	Non Latching	30 ms	10 ms	Through Hole	313 mA	-40 °C	55 °C	Silver Tin Oxide (AgSnO)	35 A	Sealed - Flux Protection	4.5 VDC	DPST-NO (2 Form A)	277 VAC	Class F	19.1 Ohms	CQC cURus VDE
Panasonic Electric Works AHES3195Q	General Purpose	0.45 VDC	PC Pin	Non Latching	30 ms	10 ms	Through Hole	209 mA	-40 °C	70 °C	Silver Tin Oxide (AgSnO)	40 A	Sealed - Flux Protection	6.75 VDC	DPST-NO (2 Form A)	110 VDC 480 VAC		43.1 Ohms	CQC cURus VDE	9 VDC	4400 W 19200 VA
Panasonic Electric Works AHES3193Q	General Purpose	2.4 VDC	PC Pin	Non Latching	30 ms	10 ms	Through Hole	39 mA	-40 °C	70 °C	Silver Tin Oxide (AgSnO)	40 A	Sealed - Flux Protection	36 VDC	DPST-NO (2 Form A)	110 VDC 480 VAC		1.226 kOhms	CQC cURus VDE	48 VDC	4400 W 19200 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.39
		10	$ 12.79
		25	$ 12.15
		50	$ 11.51
		100	$ 11.26

Description

General part information

AHES31 Series

General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
