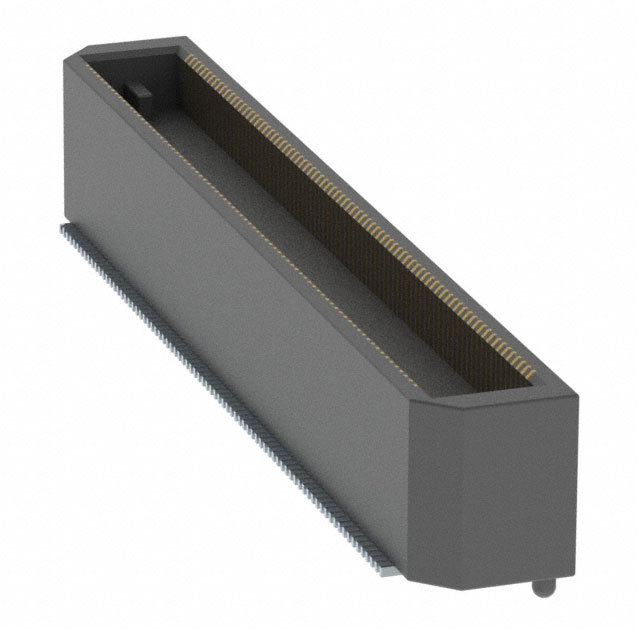

BTH-080-02-L-D-A-K

Active

Samtec Inc.

CONN HDR 160POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 160POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	BTH-080-02-L-D-A-K

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide
Height Above Board	7.26 mm
Height Above Board	0.286 "
Mated Stacking Heights	8 mm
Mounting Type	Surface Mount
Number of Positions	160
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Features	Number of Positions	Contact Finish	Mated Stacking Heights
Samtec Inc. BTH-080-02-L-D-A	2	0.5 mm	0.02 in	Surface Mount	7.26 mm	0.286 "	10 Áin	0.25 Ám	Header Outer Shroud Contacts	Board Guide	160	Gold	8 mm
Samtec Inc. BTH-080-02-L-D-A-K	2	0.5 mm	0.02 in	Surface Mount	7.26 mm	0.286 "	10 Áin	0.25 Ám	Header Outer Shroud Contacts	Board Guide	160	Gold	8 mm
Samtec Inc. BTH-080-02-F-D-A	2	0.5 mm	0.02 in	Surface Mount	7.26 mm	0.286 "	3 Áin	0.076 Ám	Header Outer Shroud Contacts	Board Guide	160	Gold	8 mm
Samtec Inc. BTH-080-02-L-D-A-K-TR	2	0.5 mm	0.02 in	Surface Mount	7.26 mm	0.286 "	10 Áin	0.25 Ám	Header Outer Shroud Contacts	Board Guide	160	Gold	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

160 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
