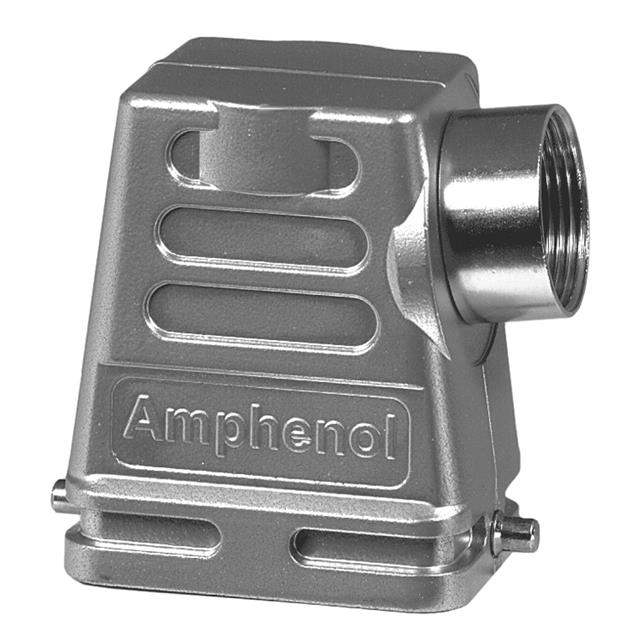

C146 10G006 507 8

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 PG29

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE6 PG29

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10G006 507 8

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	70 mm
Size / Dimension [z]	2.756 in
Style	Side Entry
Thread Size	PG29

Part	Connector Type	Housing Material	Thread Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Lock Location
Amphenol Tuchel Industrial C146 10G006 506 8	Hood	Aluminum Die Cast	PG21	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Side Entry	60 mm	70 mm	2.362 in	1.693 in	2.756 in	43 mm	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10G006 507 8	Hood	Aluminum Die Cast	PG29	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Side Entry	60 mm	70 mm	2.362 in	1.693 in	2.756 in	43 mm	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10G006 606 8	Hood	Aluminum Die Cast	PG21	IP65 - Dust Tight Water Resistant	100 °C	-40 °C	Top Entry	60 mm	70 mm	2.362 in	1.693 in	2.756 in	43 mm	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	35	$ 19.62

General part information

Hood Connector Side Entry PG29 E6 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
