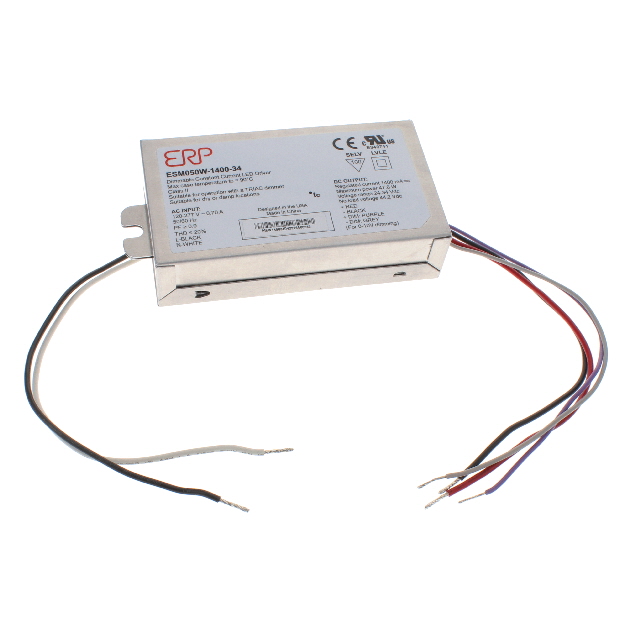

ESM050W-1400-34

Active

ERP Power, LLC

LED DRIVER CC AC/DC 23-34V 1.4A

Search across all available documentation for this part.

Active

ERP Power, LLC

LED DRIVER CC AC/DC 23-34V 1.4A

Technical Specifications

Parameters and characteristics commom to parts in this series

LED DRIVER CC AC/DC 28-42V 1.2A

Part	Weight	Weight	Type	Ratings	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Mounting Type	Dimming	Topology	Efficiency	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Power (Watts)	Features
ERP Power, LLC ESM050W-1200-42	252 g	0.556 lb	Constant Current	IP20, NEMA 410	28 V	42 V	120 VAC	1.2 A	1	Chassis Mount	ELV, TRIAC	AC DC Converter	87 %	277 VAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	Wire Leads	-30 ░C	90 °C	CB, CE, cRUcs, cUL, FC, UL	50 W	OCP, OTP, SCP
ERP Power, LLC ESM050W-1050-42	252 g	0.556 lb	Constant Current	IP20, NEMA 410	28 V	42 V	120 VAC	1.05 A	1	Chassis Mount	ELV, TRIAC	AC DC Converter	87 %	277 VAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	Wire Leads	-30 ░C	90 °C	CB, CE, cRUcs, cUL, FC, UL	44 W	OCP, OTP, SCP
ERP Power, LLC ESM050W-1400-34	252 g	0.556 lb	Constant Current	IP20, NEMA 410	23 V	34 V	120 VAC	1.4 A	1	Chassis Mount	ELV, TRIAC	AC DC Converter	87 %	277 VAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	Wire Leads	-30 ░C	90 °C	CB, CE, cRUcs, cUL, FC, UL	48 W	OCP, OTP, SCP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4A 23 ~ 34V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources
