Technical Specifications
Parameters and characteristics for this part

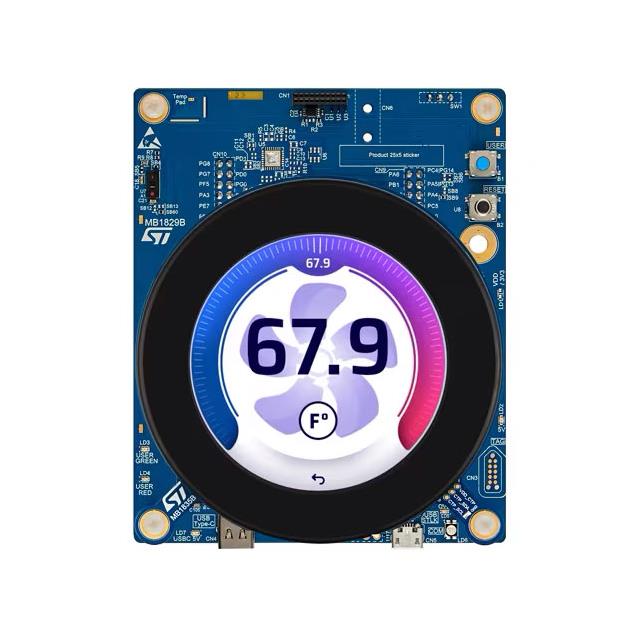

| Specification | STM32U5G9J-DK1 |
|---|---|
| Board Type | Evaluation Platform |
| Contents | Board(s) |
| Core Processor | ARM® Cortex®-M33 |
| Mounting Type | Fixed |
| Platform | Discovery |
| Suggested Programming Environment | STM32Cube, Keil MDK, IAR EW |
| Type | MCU 32-Bit |
| Utilized IC / Part | STM32U5G9NJ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STM32U5G9J-DK1 Series
The STM32U5Gxxx devices belong to an ultra-low-power microcontrollers family (STM32U5 Series) based on the high-performance Arm®Cortex®-M33 32-bit RISC core. They operate at a frequency of up to 160 MHz.
The Cortex®-M33 core features a single-precision FPU (floating-point unit), that supports all the Arm®single-precision data-processing instructions and all the data types.
The Cortex®-M33 core also implements a full set of DSP (digital signal processing) instructions and a MPU (memory protection unit) that enhances the application security.
