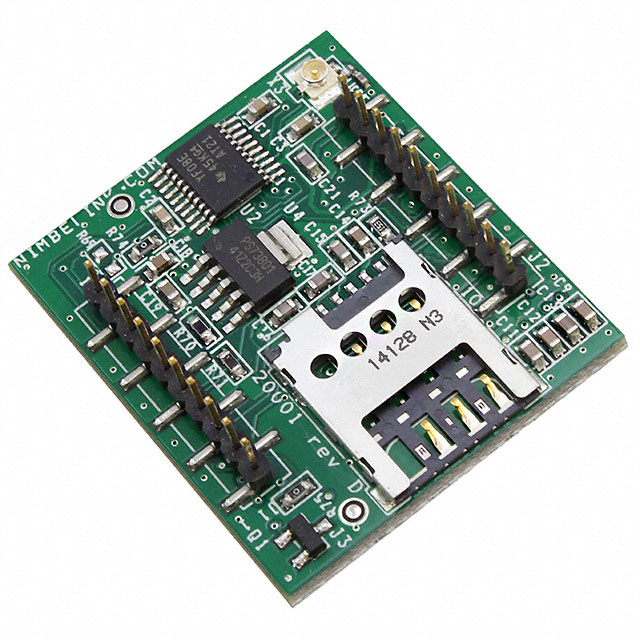

NL-SW-HSPAPG

Obsolete

NimbeLink, LLC

RF TXRX MODULE CELL/NAV U.FL TH

Search across all available documentation for this part.

Obsolete

NimbeLink, LLC

RF TXRX MODULE CELL/NAV U.FL TH

Technical Specifications

Parameters and characteristics commom to parts in this series

RF TXRX MOD CELL U.FL TH

Part	Mounting Type	Protocol	RF Family/Standard	Current - Receiving	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Type	Serial Interfaces	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case
NimbeLink, LLC NL-SW-HSPAPE	Through Hole	2G/3G HSPA+	Cellular	580 mA	580 mA	85 °C	-40 °C	Antenna Not Included, U.FL	UART, USB	1.7 GHz, 800 MHz, 850 MHz, 1900 MHz	4.3 V	3.5 V	20-DIP Module
NimbeLink, LLC NL-SW-HSPAPG	Through Hole	GPS, HSPA+	Cellular, Navigation	580 mA	580 mA	85 °C	-40 °C	Antenna Not Included, U.FL	UART, USB	1.7 GHz, 800 MHz, 850 MHz, 1900 MHz	4.3 V	3.5 V	20-DIP Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cellular, Navigation GPS, HSPA+ Transceiver Module 800MHz, 850MHz, 1.7GHz, 1.9GHz Antenna Not Included, U.FL Through Hole
