Q-0A03F000H084i

Active

Amphenol Custom Cable

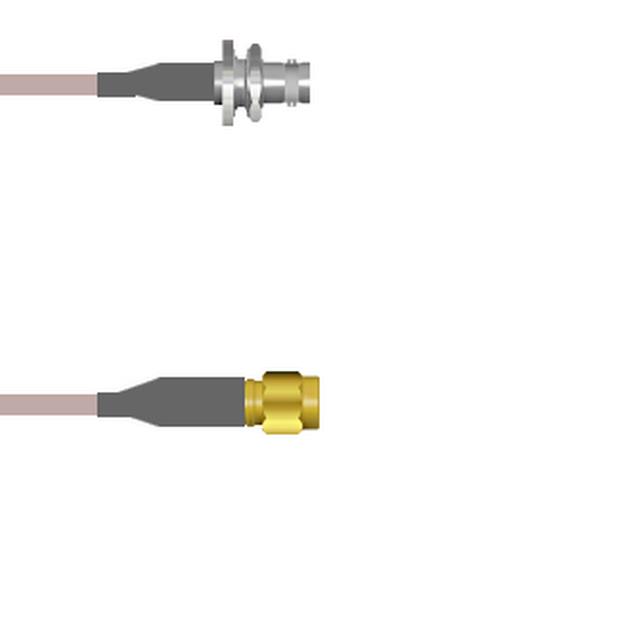

CBL ASSY BNC-SMA JACK-PLUG 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0A03F000H084i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA JACK-PLUG 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0A03F000H084i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0A03F0 Series

Part	2nd Connector Mounting Type	Features	2nd Contact Gender	Overall Impedance	1st Contact Gender	2nd Connector	Color	Cable Type	1st Connector Mounting Type	1st Connector	Frequency - Max [Max]	1st Connector Mounting Feature	Length	Length	Length	Style
Amphenol Custom Cable Q-0A03F000H001M	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	1 m	3.3 ft	39.4 in	BNC to SMA
Amphenol Custom Cable Q-0A03F000H024i	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	609.6 mm		24 "	BNC to SMA
Amphenol Custom Cable Q-0A03F000H002M	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	2 m	6.6 ft	78.7 in	BNC to SMA
Amphenol Custom Cable Q-0A03F000H.75M	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	750 mm		29.53 "	BNC to SMA
Amphenol Custom Cable Q-0A03F000H012i	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	304.8 mm		12 "	BNC to SMA
Amphenol Custom Cable Q-0A03F000H084i	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	2.1 m	7 ft	84 in	BNC to SMA
Amphenol Custom Cable Q-0A03F000H072i	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	1.8 m	6 ft	72 in	BNC to SMA
Amphenol Custom Cable Q-0A03F000H006i	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	152.4 mm		6 in	BNC to SMA
Amphenol Custom Cable Q-0A03F000H2.5M	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	2.5 m	8.2 '	98.4 in	BNC to SMA
Amphenol Custom Cable Q-0A03F000H003M	Free Hanging (In-Line)	Shielded	Male	50 Ohms	Female	SMA Plug	Copper	RG-142	Panel Mount	BNC Jack	4 GHz	Bulkhead - Front Side Nut	3 m	9.8 '	118.1 in	BNC to SMA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 142.29
		25	$ 139.47
		50	$ 136.65
		100	$ 133.83
		250	$ 131.01

Description

General part information

Q-0A03F0 Series

Cable Assembly Coaxial BNC to SMA RG-142 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
