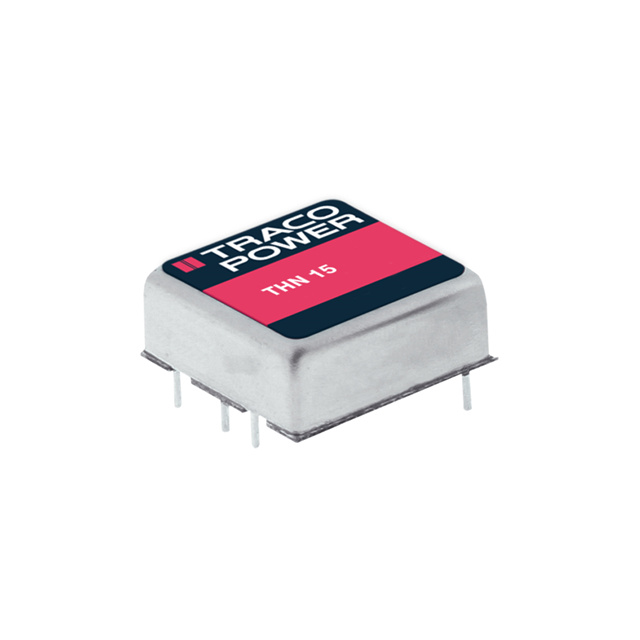

THN 15-4812
ActiveTraco Power
DC DC CONVERTER 12V 16W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
THN 15-4812
ActiveTraco Power
DC DC CONVERTER 12V 16W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | THN 15-4812 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.3 A |
| Efficiency | 88 % |
| Features | Remote On/Off, OVP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 16 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 9.9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12 V |
THN 15 Series
| Part | Voltage - Input (Max) [Max] | Power (Watts) | Mounting Type | Features | Type | Efficiency | Voltage - Output 1 | Voltage - Isolation | Number of Outputs | Current - Output (Max) [Max] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Applications | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power | 36 V | 15 W | Through Hole | OCP OVP Remote On/Off SCP | Isolated Module | 91 % | 24 V | 1.6 kV | 1 | 625 mA | 6-DIP Module | -40 °C | 105 C | 18 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) | |||||
Traco Power | 75 V | 15 W | Through Hole | OVP Remote On/Off SCP UVLO | Isolated Module | 89 % | 5 V | 3000 V | 1 | 3 A | 6-DIP Module | -40 °C | 90 °C | 18 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) Railway | |||||
Traco Power | 36 V | 15 W | Through Hole | OVP Remote On/Off SCP UVLO | Isolated Module | 89 % | 15 V | 3000 V | 1 | 1 A | 6-DIP Module | -40 °C | 90 °C | 9 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) Railway | |||||
Traco Power | 36 V | 15 W | Through Hole | OVP Remote On/Off SCP UVLO | Isolated Module | 89 % | 15 V | 3000 V | 2 | 6-DIP Module | -40 °C | 90 °C | 9 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) Railway | -15 V | 500 mA | 500 mA | |||
Traco Power | 75 V | 15 W | Through Hole | OVP Remote On/Off SCP | Isolated Module | 85 % | 5 V | 1.5 kV | 2 | 6-DIP Module | -40 °C | 85 °C | 36 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) | -5 V | 1.5 A | 1.5 A | |||
Traco Power | 36 V | 15 W | Through Hole | OVP Remote On/Off SCP | Isolated Module | 90 % | 24 V | 1.5 kV | 2 | 6-DIP Module | -40 °C | 85 °C | 18 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) | -24 V | |||||
Traco Power | 75 V | 15 W | Through Hole | OVP Remote On/Off SCP UVLO | Isolated Module | 90 % | 24 V | 1.6 kV | 2 | 6-DIP Module | -40 °C | 85 °C | 18 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) | -24 V | CB cURus | ||||
Traco Power | 75 V | 16 W | Through Hole | OVP Remote On/Off SCP | Isolated Module | 88 % | 12 V | 1.5 kV | 1 | 1.3 A | 6-DIP Module | -40 °C | 85 °C | 36 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) | |||||
Traco Power | 75 V | 16 W | Through Hole | OVP Remote On/Off SCP UVLO | Isolated Module | 89 % | 12 V | 3000 V | 1 | 1.3 A | 6-DIP Module | -40 °C | 90 °C | 18 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) Railway | |||||
Traco Power | 18 V | 15 W | Through Hole | OCP OVP Remote On/Off SCP | Isolated Module | 86 % | 5 V | 1.6 kV | 2 | 6-DIP Module | -40 °C | 105 C | 9 V | 25.4 mm | 1 in | 0.39 in | 25.4 mm | 25.4 mm | 9.9 mm | ITE (Commercial) | -5 V | 1.5 A | 1.5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 40.80 | |
| 10 | $ 26.99 | |||
Description
General part information
THN 15 Series
Isolated Module DC DC Converter 1 Output 12V 1.3A 36V - 75V Input
