PD60-4-1260-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

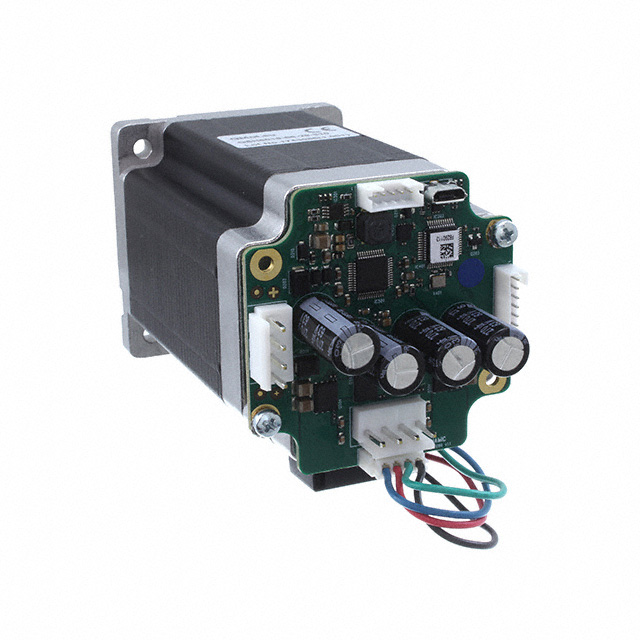

PANDRIVE NEMA24, 48V, 3.1NM

Deep-Dive with AI

Search across all available documentation for this part.

PD60-4-1260-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

PANDRIVE NEMA24, 48V, 3.1NM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PD60-4-1260-CANOPEN	PD60-4 Series

Accuracy	-	Ý5%
Coil Resistance	-	1.5 - 15 Ohms
Coil Type	Bipolar	Bipolar
Current Rating (Amps)	2.8 A	2.8 A
Diameter - Shaft [diameter]	0.315 in	0.315 in
Diameter - Shaft [diameter]	8 mm	8 mm
Features	Flatted Shaft, Integrated Controller	Flatted Shaft, Integrated Controller
Length - Shaft and Bearing [x]	24 mm	24 mm
Length - Shaft and Bearing [x]	0.945 in	0.945 in
Mounting Hole Spacing	47.14 mm	47.14 mm
Mounting Hole Spacing	1.856 in	1.856 in
NEMA Frame Size	24	24
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Rotor Inertia	840 gcm²	840 gcm²
Size / Dimension [x]	2.362 in	2.362 - 3.386 in
Size / Dimension [x]	60 mm	60 - 86 mm
Size / Dimension [y]	2.362 in	2.362 - 3.386 in
Size / Dimension [y]	60 mm	60 - 86 mm
Step Angle	1.8 °	1.8 °
Step Angle	-	1.8¯
Steps per Revolution	200	200
Torque - Holding (oz-in / mNm)	438.99 oz-in	424.93 - 438.99 oz-in
Torque - Holding (oz-in / mNm)	3100 mNm	3000 - 3100 mNm
Type	Hybrid	Hybrid
Voltage - Rated	6.8 VDC	2.1 - 24 VDC
Voltage - Rated	-	48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 381.94

PD60-4 Series

PANDRIVE NEMA24, 48V, 3.1NM

Part	Step Angle	NEMA Frame Size	Features	Rotor Inertia	Steps per Revolution	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Coil Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing	Mounting Hole Spacing	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Current Rating (Amps)	Accuracy	Step Angle	Voltage - Rated [custom]	Coil Resistance
Analog Devices Inc./Maxim Integrated PD60-4H-1378-TMCL	1.8 °	24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	2.1 VDC	Bipolar	2.362 in	2.362 in	60 mm	60 mm	424.93 oz-in	3000 mNm	Hybrid
Analog Devices Inc./Maxim Integrated PD60-4-1161	1.8 °	24	Flatted Shaft, Integrated Controller		200			24 VDC	Bipolar	2.362 in	2.362 in	60 mm	60 mm	438.99 oz-in	3100 mNm	Hybrid	0.315 in	8 mm	47.14 mm	1.856 in	24 mm	0.945 in	2.8 A
Analog Devices Inc./Maxim Integrated PD60-4H-1378-CANOPEN		24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	2.1 VDC	Bipolar	2.362 in	2.362 in	60 mm	60 mm	424.93 oz-in	3000 mNm	Hybrid								Ý5%	1.8¯
Analog Devices Inc./Maxim Integrated PD60-4-1160-CANOPEN	1.8 °	24	Flatted Shaft, Integrated Controller		200				Bipolar	2.362 in	2.362 in	60 mm	60 mm	438.99 oz-in	3100 mNm	Hybrid	0.315 in	8 mm	47.14 mm	1.856 in	24 mm	0.945 in	2.8 A			48 VDC
Analog Devices Inc./Maxim Integrated PD60-4-1260-TMCL	1.8 °	24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	6.8 VDC	Bipolar	2.362 in	2.362 in	60 mm	60 mm	438.99 oz-in	3100 mNm	Hybrid	0.315 in	8 mm	47.14 mm	1.856 in	24 mm	0.945 in	2.8 A
Analog Devices Inc./Maxim Integrated PD60-4H-1278-TMCL	1.8 °	24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	2.1 VDC	Bipolar	3.386 in	3.386 in	86 mm	86 mm	424.93 oz-in	3000 mNm	Hybrid
Analog Devices Inc./Maxim Integrated PD60-4-1076	1.8 °	24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	4.17 VDC	Bipolar	2.362 in	2.362 in	60 mm	60 mm	438.99 oz-in	3100 mNm	Hybrid							2.8 A				1.5 Ohms
Analog Devices Inc./Maxim Integrated PD60-4-1378-CANOPEN	1.8 °	24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	4.17 VDC	Bipolar	2.362 in	2.362 in	60 mm	60 mm	438.99 oz-in	3100 mNm	Hybrid							2.8 A				1.5 Ohms
Analog Devices Inc./Maxim Integrated PD60-4-1276-TMCL	1.8 °	24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	4.17 VDC	Bipolar	2.362 in	2.362 in	60 mm	60 mm	438.99 oz-in	3100 mNm	Hybrid							2.8 A				1.5 Ohms
Analog Devices Inc./Maxim Integrated PD60-4H-1278-CANOPEN		24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	2.1 VDC	Bipolar	3.386 in	3.386 in	86 mm	86 mm	424.93 oz-in	3000 mNm	Hybrid								Ý5%	1.8¯		15 Ohms
Analog Devices Inc./Maxim Integrated PD60-4-1160-TMCL	1.8 °	24	Flatted Shaft, Integrated Controller		200				Bipolar	2.362 in	2.362 in	60 mm	60 mm	438.99 oz-in	3100 mNm	Hybrid	0.315 in	8 mm	47.14 mm	1.856 in	24 mm	0.945 in	2.8 A			48 VDC
Analog Devices Inc./Maxim Integrated PD60-4-1260-CANOPEN	1.8 °	24	Flatted Shaft, Integrated Controller	840 gcm²	200	50 °C	-20 C	6.8 VDC	Bipolar	2.362 in	2.362 in	60 mm	60 mm	438.99 oz-in	3100 mNm	Hybrid	0.315 in	8 mm	47.14 mm	1.856 in	24 mm	0.945 in	2.8 A

Description

General part information

PD60-4 Series

Bipolar Stepper Motor Hybrid Frame Size 24 200.0 Step 2.8 A 6.8VDC

Documents

Technical documentation and resources

No documents available
