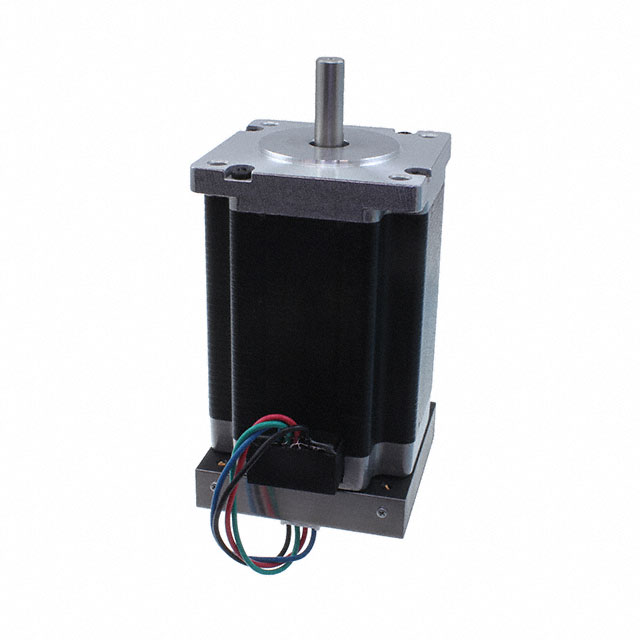

PD60-4-1276-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Search across all available documentation for this part.
PD60-4-1276-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD60-4-1276-TMCL | PD60-4 Series |
|---|---|---|
| Accuracy | - | Ý5% |
| Coil Resistance | 1.5 Ohms | 1.5 - 15 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 2.8 A | 2.8 A |
| Diameter - Shaft | - | 0.315 in |
| Diameter - Shaft | - | 8 mm |
| Features | Flatted Shaft, Integrated Controller | Flatted Shaft, Integrated Controller |
| Length - Shaft and Bearing | - | 24 mm |
| Length - Shaft and Bearing | - | 0.945 in |
| Mounting Hole Spacing | - | 47.14 mm |
| Mounting Hole Spacing | - | 1.856 in |
| NEMA Frame Size | 24 | 24 |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Rotor Inertia | 840 gcm² | 840 gcm² |
| Size / Dimension [x] | 2.362 in | 2.362 - 3.386 in |
| Size / Dimension [x] | 60 mm | 60 - 86 mm |
| Size / Dimension [y] | 2.362 in | 2.362 - 3.386 in |
| Size / Dimension [y] | 60 mm | 60 - 86 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Step Angle | - | 1.8¯ |
| Steps per Revolution | 200 | 200 |
| Torque - Holding (oz-in / mNm) | 438.99 oz-in | 424.93 - 438.99 oz-in |
| Torque - Holding (oz-in / mNm) | 3100 mNm | 3000 - 3100 mNm |
| Type | Hybrid | Hybrid |
| Voltage - Rated | 4.17 VDC | 2.1 - 24 VDC |
| Voltage - Rated | - | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 321.30 | |
| 5 | $ 295.28 | |||
| 10 | $ 290.00 | |||
PD60-4 Series
PANDRIVE NEMA24, 48V, 3.1NM
| Part | Step Angle | NEMA Frame Size | Features | Rotor Inertia | Steps per Revolution | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Coil Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Mounting Hole Spacing | Mounting Hole Spacing | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Current Rating (Amps) | Accuracy | Step Angle | Voltage - Rated [custom] | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD60-4H-1378-TMCL | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 2.1 VDC | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 424.93 oz-in | 3000 mNm | Hybrid | |||||||||||
Analog Devices Inc./Maxim Integrated PD60-4-1161 | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 200 | 24 VDC | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 438.99 oz-in | 3100 mNm | Hybrid | 0.315 in | 8 mm | 47.14 mm | 1.856 in | 24 mm | 0.945 in | 2.8 A | |||||||
Analog Devices Inc./Maxim Integrated PD60-4H-1378-CANOPEN | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 2.1 VDC | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 424.93 oz-in | 3000 mNm | Hybrid | Ý5% | 1.8¯ | ||||||||||
Analog Devices Inc./Maxim Integrated PD60-4-1160-CANOPEN | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 200 | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 438.99 oz-in | 3100 mNm | Hybrid | 0.315 in | 8 mm | 47.14 mm | 1.856 in | 24 mm | 0.945 in | 2.8 A | 48 VDC | |||||||
Analog Devices Inc./Maxim Integrated PD60-4-1260-TMCL | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 6.8 VDC | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 438.99 oz-in | 3100 mNm | Hybrid | 0.315 in | 8 mm | 47.14 mm | 1.856 in | 24 mm | 0.945 in | 2.8 A | ||||
Analog Devices Inc./Maxim Integrated PD60-4H-1278-TMCL | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 2.1 VDC | Bipolar | 3.386 in | 3.386 in | 86 mm | 86 mm | 424.93 oz-in | 3000 mNm | Hybrid | |||||||||||
Analog Devices Inc./Maxim Integrated PD60-4-1076 | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 4.17 VDC | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 438.99 oz-in | 3100 mNm | Hybrid | 2.8 A | 1.5 Ohms | |||||||||
Analog Devices Inc./Maxim Integrated PD60-4-1378-CANOPEN | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 4.17 VDC | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 438.99 oz-in | 3100 mNm | Hybrid | 2.8 A | 1.5 Ohms | |||||||||
Analog Devices Inc./Maxim Integrated PD60-4-1276-TMCL | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 4.17 VDC | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 438.99 oz-in | 3100 mNm | Hybrid | 2.8 A | 1.5 Ohms | |||||||||
Analog Devices Inc./Maxim Integrated PD60-4H-1278-CANOPEN | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 2.1 VDC | Bipolar | 3.386 in | 3.386 in | 86 mm | 86 mm | 424.93 oz-in | 3000 mNm | Hybrid | Ý5% | 1.8¯ | 15 Ohms | |||||||||
Analog Devices Inc./Maxim Integrated PD60-4-1160-TMCL | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 200 | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 438.99 oz-in | 3100 mNm | Hybrid | 0.315 in | 8 mm | 47.14 mm | 1.856 in | 24 mm | 0.945 in | 2.8 A | 48 VDC | |||||||
Analog Devices Inc./Maxim Integrated PD60-4-1260-CANOPEN | 1.8 ° | 24 | Flatted Shaft, Integrated Controller | 840 gcm² | 200 | 50 °C | -20 C | 6.8 VDC | Bipolar | 2.362 in | 2.362 in | 60 mm | 60 mm | 438.99 oz-in | 3100 mNm | Hybrid | 0.315 in | 8 mm | 47.14 mm | 1.856 in | 24 mm | 0.945 in | 2.8 A |
Description
General part information
PD60-4 Series
Bipolar Stepper Motor Hybrid Frame Size 24 200.0 Step 2.8 A 4.17VDC
