CES-103-02-L-S-RA

Active

Samtec Inc.

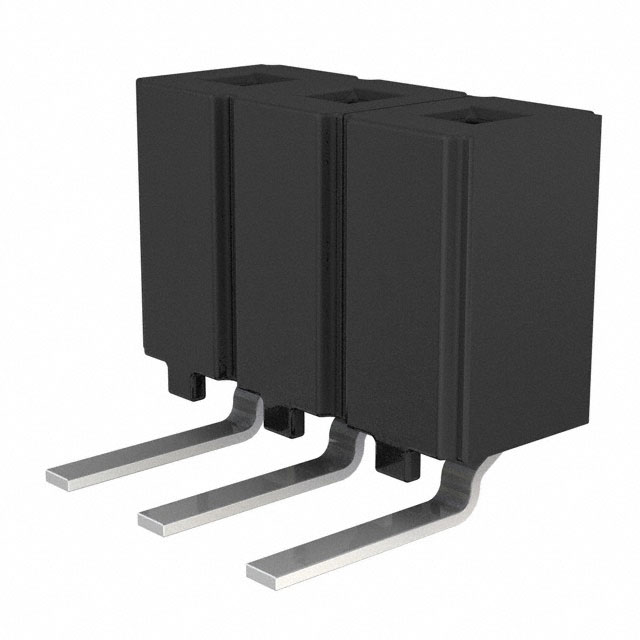

CONN RCPT 3POS 0.1 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCES Datasheet CES Series Other Related Documents 01 +1

CES-103-02-L-S-RA

Active

Samtec Inc.

CONN RCPT 3POS 0.1 GOLD PCB R/A

Deep-Dive with AI

DocumentsCES Datasheet CES Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CES-103-02-L-S-RA

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.05 mm
Insulation Height	0.12 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

CES-103 Series

Part	Number of Positions Loaded	Termination	Connector Type	Fastening Type	Contact Finish - Post	Material Flammability Rating	Number of Positions	Insulation Material	Contact Length - Post	Contact Length - Post	Contact Type	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Mounting Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height
Samtec Inc. CES-103-01-T-D	All	Solder	Receptacle	Push-Pull	Tin	UL94 V-0	6	Polybutylene Terephthalate (PBT)	0.128 "	3.25 mm	Female Socket	0.1 in	2.54 mm	Square	Black	105 ░C	-55 °C	2.54 mm	0.1 in	Phosphor Bronze	Through Hole	2
Samtec Inc. CES-103-02-G-D	All	Solder	Receptacle	Push-Pull	Gold	UL94 V-0	6	Polybutylene Terephthalate (PBT)			Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C	2.54 mm	0.1 in	Phosphor Bronze	Through Hole	2	5.66 mm	0.223 in	0.51 µm	20 µin	Gold	3 µin	0.076 µm
Samtec Inc. CES-103-02-L-D	All	Solder	Receptacle	Push-Pull	Tin	UL94 V-0	6	Polybutylene Terephthalate (PBT)			Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C	2.54 mm	0.1 in	Phosphor Bronze	Through Hole	2	5.66 mm	0.223 in	0.25 çm	10 çin	Gold
Samtec Inc. CES-103-01-F-S	All	Solder	Receptacle	Push-Pull	Tin	UL94 V-0		Polybutylene Terephthalate (PBT)	0.128 "	3.25 mm	Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C			Phosphor Bronze	Through Hole	1			0.076 µm	3 µin	Gold
Samtec Inc. CES-103-02-L-S-RA	All	Solder	Receptacle	Push-Pull	Tin	UL94 V-0		Polybutylene Terephthalate (PBT)			Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C			Phosphor Bronze	Through Hole Right Angle	1	3.05 mm	0.12 in	0.25 çm	10 çin	Gold			3.05 mm	0.12 in
Samtec Inc. CES-103-01-L-S	All	Solder	Receptacle	Push-Pull	Tin	UL94 V-0		Polybutylene Terephthalate (PBT)	0.128 "	3.25 mm	Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C			Phosphor Bronze	Through Hole	1			0.25 çm	10 çin	Gold
Samtec Inc. CES-103-01-F-D	All	Solder	Receptacle	Push-Pull	Tin	UL94 V-0	6	Polybutylene Terephthalate (PBT)	0.128 "	3.25 mm	Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C	2.54 mm	0.1 in	Phosphor Bronze	Through Hole	2			0.076 µm	3 µin	Gold
Samtec Inc. CES-103-01-G-S	All	Solder	Receptacle	Push-Pull	Gold	UL94 V-0		Polybutylene Terephthalate (PBT)	0.128 "	3.25 mm	Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C			Phosphor Bronze	Through Hole	1			0.51 µm	20 µin	Gold	3 µin	0.076 µm
Samtec Inc. CES-103-01-G-D	All	Solder	Receptacle	Push-Pull	Gold	UL94 V-0	6	Polybutylene Terephthalate (PBT)	0.128 "	3.25 mm	Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C	2.54 mm	0.1 in	Phosphor Bronze	Through Hole	2			0.51 µm	20 µin	Gold	3 µin	0.076 µm
Samtec Inc. CES-103-02-S-S	All	Solder	Receptacle	Push-Pull	Tin	UL94 V-0		Polybutylene Terephthalate (PBT)			Female Socket	0.1 in	2.54 mm	Square	Black	125 °C	-55 °C			Phosphor Bronze	Through Hole	1	5.66 mm	0.223 in	0.76 Ám	30 Áin	Gold
