62-GRAY-3/8"X36YD

Active

3M (TC)

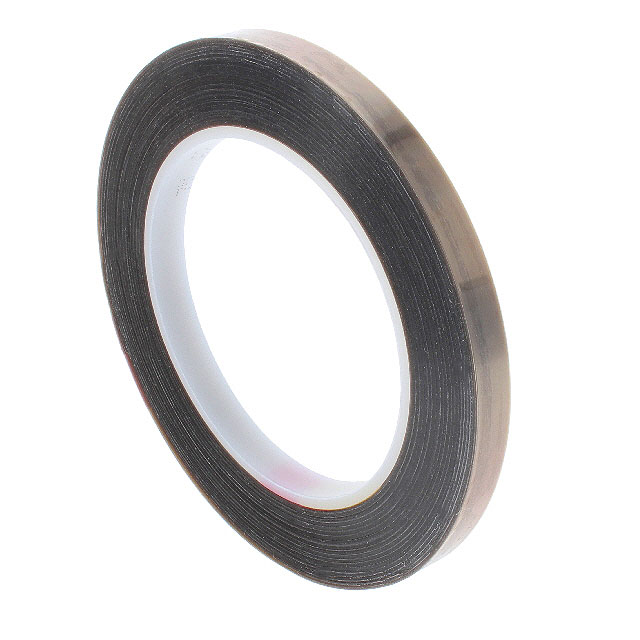

TAPE FILM GRAY 3/8"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE FILM GRAY 3/8"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	62-GRAY-3/8"X36YD

Adhesive	Silicone Thermosetting
Color	Gray
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Tape Type	Film
Temperature Range	180 °C
Temperature Range	356 °F
Thickness	0.102 mm
Thickness	4 mils
Thickness	0.004 in
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	High Temperature, Insulating
Width	0.375 in
Width	9.65 mm
Width	0.38 in

Part	Color	Usage	Width	Width	Width	Length	Length	Length	Thickness	Thickness	Thickness	Shelf Life	Tape Type	Shelf Life Start	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range	Temperature Range	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]
3M (TC) 62-GRAY-1/4"X36YD	Translucent - Gray	Electrically Insulating	0.25 in	0.25 in	6.35 mm	36 yd	32.9 m	108 ft	0.102 mm	4 mils	0.004 in	60 Months	Electrical	Date of Manufacture	Silicone Thermosetting
3M (TC) 62-GRAY-3/8"X36YD	Gray	High Temperature Insulating	0.375 in	0.38 in	9.65 mm	36 yd	32.9 m	108 ft	0.102 mm	4 mils	0.004 in	60 Months	Film	Date of Manufacture	Silicone Thermosetting	0.002 "	0.051 mm	2 mils	180 °C	356 °F	2 mils	0.051 mm	0.002 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 62.73

General part information

Film Tape Silicone Thermosetting Adhesive Gray 0.38" (9.65mm) 3/8" X 108' (32.9m) 36 yds

Technical documentation and resources
