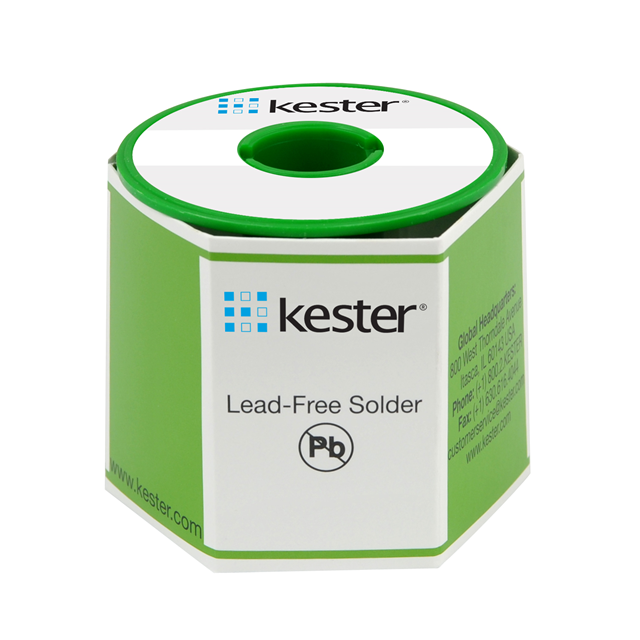

14-7068-0031

Active

Kester Solder

SOLDER SOLID WIRE .031" 1LB SPL

Search across all available documentation for this part.

Active

Kester Solder

SOLDER SOLID WIRE .031" 1LB SPL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	14-7068-0031	14-7068 Series

Composition	Sn96.5Ag3Cu0.5 (96.5/3/0.5)	Sn96.5Ag3Cu0.5 (96.5/3/0.5)
Diameter	-	1.02 - 3.18 mm
Diameter	-	0.04 - 0.125 in
Form	Spool, 1 lb (454 g)	Spool, 1 lb (454 g)
Melting Point [Max]	218 °C	218 °C
Melting Point [Max]	424 °F	424 °F
Melting Point [Min]	217 °C	217 °C
Melting Point [Min]	423 °F	423 °F
Storage/Refrigeration Temperature [Max]	40 °C	40 °C
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Wire Solder	Wire Solder
Wire Gauge	20 AWG, 22 SWG	20 AWG, 22 SWG
Wire Gauge	-	8 - 19 SWG

SOLDER SOLID WIRE .040" 1LB SPL

Part	Type	Diameter [diameter]	Diameter [diameter]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Form	Melting Point [Min]	Melting Point [Min]	Melting Point [Max]	Melting Point [Max]	Wire Gauge	Composition	Wire Gauge
Kester Solder 14-7068-0040	Wire Solder	1.02 mm	0.04 in	10 °C	40 °C	Spool, 1 lb (454 g)	217 °C	423 °F	218 °C	424 °F	18 AWG, 19 SWG	Sn96.5Ag3Cu0.5 (96.5/3/0.5)
Kester Solder 14-7068-0062	Wire Solder	1.57 mm	0.062 in	10 °C	40 °C	Spool, 1 lb (454 g)	217 °C	423 °F	218 °C	424 °F	13.5 AWG, 16 SWG	Sn96.5Ag3Cu0.5 (96.5/3/0.5)
Kester Solder 14-7068-0031	Wire Solder			10 °C	40 °C	Spool, 1 lb (454 g)	217 °C	423 °F	218 °C	424 °F		Sn96.5Ag3Cu0.5 (96.5/3/0.5)	20 AWG, 22 SWG
Kester Solder 14-7068-0125	Wire Solder	3.18 mm	0.125 "	10 °C	40 °C	Spool, 1 lb (454 g)	217 °C	423 °F	218 °C	424 °F	8 AWG, 10 SWG	Sn96.5Ag3Cu0.5 (96.5/3/0.5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Lead Free Wire Solder Sn96.5Ag3Cu0.5 (96.5/3/0.5) 20 AWG, 22 SWG Spool, 1 lb (454 g)
