095FPZFJZSGM500
ActiveAmphenol RF

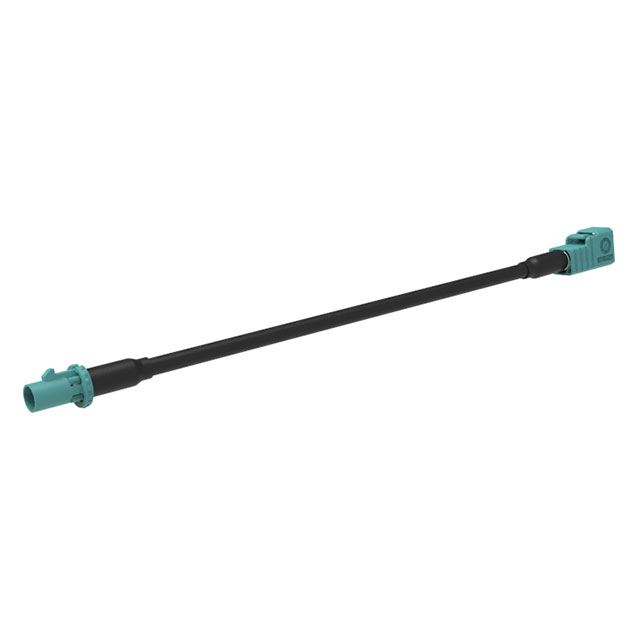

RF / COAXIAL CABLE ASSEMBLY, FAKRA PLUG TO FAKRA JACK, RG58, 50 OHM, 16.4 FT, 5 M
Deep-Dive with AI
Search across all available documentation for this part.
095FPZFJZSGM500
ActiveAmphenol RF
RF / COAXIAL CABLE ASSEMBLY, FAKRA PLUG TO FAKRA JACK, RG58, 50 OHM, 16.4 FT, 5 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 095FPZFJZSGM500 |
|---|---|
| 1st Connector | Fakra III (Gen 3.0) Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Fakra II (Gen 2.0) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-58 |
| Color | Black |
| Frequency - Max [Max] | 3 GHz |
| Length | 196.9 in |
| Length | 5 m |
| Length | 16.4 ft |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | Fakra to Fakra |
095FPZF Series
| Part | 2nd Connector Mounting Type | Cable Type | 2nd Contact Gender | Style | Color | Frequency - Max [Max] | 1st Contact Gender | Length | Length | Overall Impedance | Cable Impedance | 1st Connector Mounting Type | 1st Connector | 2nd Connector | Operating Temperature [Max] | Operating Temperature [Min] | Features | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Free Hanging (In-Line) | RG-58 | Male | Fakra to Fakra | Black | 3 GHz | Female | 24 " | 609.6 mm | 50 Ohms | 50 Ohms | Free Hanging (In-Line) | Fakra III (Gen 3.0) Jack | Fakra II (Gen 2.0) Plug | 85 °C | -40 °C | ||
Amphenol RF | Free Hanging (In-Line) | RG-174 | Male | Fakra to Fakra | Black | 3 GHz | Male | 39.4 in | 1 m | 50 Ohms | 50 Ohms | Free Hanging (In-Line) | Fakra II (Gen 2.0) Plug | Fakra II (Gen 2.0) Plug | 85 °C | -40 °C | Shielded Z Code | 3.3 ft |
Amphenol RF | Free Hanging (In-Line) | RG-58 | Male | Fakra to Fakra | Black | 3 GHz | Female | 196.9 in | 5 m | 50 Ohms | 50 Ohms | Free Hanging (In-Line) | Fakra III (Gen 3.0) Jack | Fakra II (Gen 2.0) Plug | 85 °C | -40 °C | 16.4 ft | |
Amphenol RF | Free Hanging (In-Line) | RG-174 | Male | Fakra to Fakra | Black | 3 GHz | Female | 12 " | 304.8 mm | 50 Ohms | 50 Ohms | Free Hanging (In-Line) | Fakra III (Gen 3.0) Jack | Fakra II (Gen 2.0) Plug | 85 °C | -40 °C | Shielded Z Code | |
Amphenol RF | Free Hanging (In-Line) | RG-174 | Male | Fakra to Fakra | Black | 3 GHz | Female | 39.4 in | 1 m | 50 Ohms | 50 Ohms | Free Hanging (In-Line) | Fakra III (Gen 3.0) Jack | Fakra II (Gen 2.0) Plug | 85 °C | -40 °C | Shielded Z Code | 3.3 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
095FPZF Series
Cable Assembly Coaxial Fakra to Fakra RG-58 196.9" (5.0m) 16.4'
