EPS-200 3/8" BL48"BX

Active

HEATSHK EPS200 3/8"X0.5" 50=50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

EPS-200 3/8" BL48"BX

Active

HEATSHK EPS200 3/8"X0.5" 50=50PC

Deep-Dive with AI

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 0.12
		50	$ 0.68
		50	$ 0.17
		100	$ 0.15
		100	$ 0.62
		100	$ 0.11
		150	$ 0.15
		150	$ 0.59
		150	$ 0.11
		250	$ 0.56
		250	$ 0.10
		250	$ 0.14
		350	$ 0.13
		350	$ 0.10
		350	$ 0.53
		500	$ 0.51
		500	$ 0.13
		500	$ 0.09
		1250	$ 0.08
		1250	$ 0.11
		1250	$ 0.47
		2500	$ 0.08
		2500	$ 0.10
		5000	$ 0.07
		5000	$ 0.10

Description

General part information

EPS-200 Series

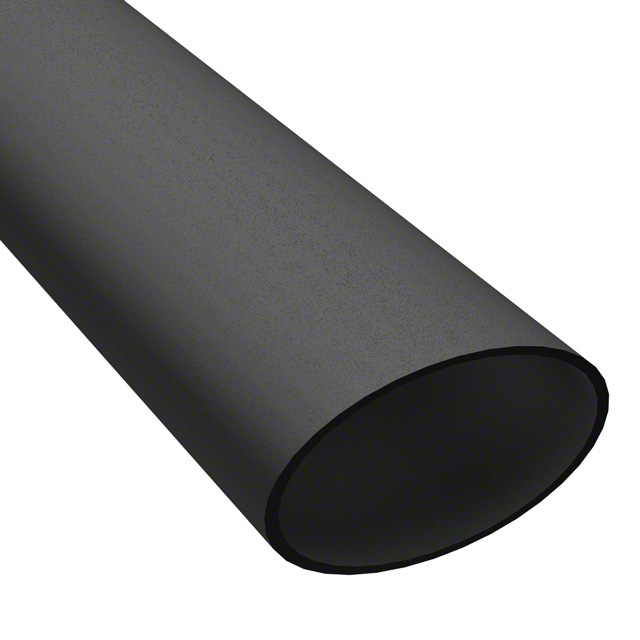

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 2 to 1 Black 0.042' (12.70mm, 0.50")

Documents

Technical documentation and resources

Datasheet

Heat Shrink Tubing and Devices Catalog

Datasheet

Specification	EPS-200 3/8" BL48"BX	EPS-200 Series

Color	Black	Black
Features	Flame Retardant, Fluid Resistant, Adhesive Lined	Flame Retardant, Fluid Resistant, Adhesive Lined
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered [diameter]	4.75 mm	1.57 - 25.4 mm
Inner Diameter - Recovered [diameter]	0.187 in	0.062 - 1 in
Inner Diameter - Supplied [diameter]	0.375 in	0.125 - 2 "
Inner Diameter - Supplied [diameter]	9.53 mm	3.18 - 50.8 mm
Length	0.062 '	0.062 - 0.25 '
Length	19.05 mm	19.05 - 152.4 mm
Length	0.75 "	0.75 - 6 "
Length	-	0.5 '
Length [x]	4 "	4 "
Length [x]	0.333 ft	0.333 - 4 ft
Length [x]	101.6 mm	1.22 - 609.6 m
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.031 "	0.027 - 0.06 "
Recovered Wall Thickness	0.79 mm	0.69 - 1.52 mm
Recovered Wall Thickness	-	0.03 "
Recovered Wall Thickness	-	0.046 in
Recovered Wall Thickness	-	1.17 mm
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	121 °C	121 °C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

Part

Material

Shrinkage Ratio

Shelf Life

Inner Diameter - Supplied [diameter]

Recovered Wall Thickness

Type

Operating Temperature [Min]

Operating Temperature [Max]

Shrink Temperature

Color

Storage/Refrigeration Temperature [Max]

Storage/Refrigeration Temperature [Min]

Shelf Life Start

Features

Inner Diameter - Recovered [diameter]

Length [x]

Length

Inner Diameter - Recovered

Length [x]

Recovered Wall Thickness

Length

Inner Diameter - Recovered

Recovered Wall Thickness [custom]

EPS200 1/8" BL48"BX

Polyolefin (PO)

2 to 1

120 Months

3.18 mm

0.125 "

0.027 "

0.69 mm

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant, Fluid Resistant

1.57 mm

0.062 in

1.22 m

4 ft

EPS-200 1/4"BL 48"BX

Polyolefin (PO)

2 to 1

120 Months

6.35 mm

0.25 in

0.76 mm

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant, Fluid Resistant

0.125 in

1.22 m, 101.6 mm

0.333 ft, 4 ft

38.1 mm, 50.8 mm

1.5 ", 2 "

0.125 ', 0.167 '

3.18 mm

4 "

0.03 "

EPS-200 1 1/2" BL 48"BX

Polyolefin (PO)

2 to 1

120 Months

38.1 mm

1.5 in

0.049 "

1.24 mm

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant, Fluid Resistant

19.05 mm

0.75 "

101.6 mm

0.333 ft

19.05 mm, 25.4 mm, 76.2 mm, 152.4 mm

0.75 ", 1 in, 3 ", 6 "

0.062 ', 0.083 ft, 0.25 ft

4 "

0.5 '

EPS200 3/16" BL48"BX

Polyolefin (PO)

2 to 1

120 Months

4.75 mm

0.187 in

0.027 "

0.69 mm

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant, Fluid Resistant

1.22 m

4 ft

2.36 mm

0.093 in

EPS200-1-48"-BLACK-24 PCS

Polyolefin (PO)

2 to 1

120 Months

25.4 mm

1 in

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant

12.7 mm

0.5 in

1.22 m

4 ft

0.046 in

1.17 mm

EPS-200 3/4" BL48"BX

Polyolefin (PO)

2 to 1

120 Months

0.037 in

0.94 mm

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant, Fluid Resistant

9.53 mm

0.375 in

1.22 m

4 ft

19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm

0.75 ", 1 in, 1.5 ", 2 ", 3 "

0.062 ', 0.083 ft, 0.125 ', 0.167 ', 0.25 ft

EPS200-3/16-48"-BLACK-250 PCS

Polyolefin (PO)

2 to 1

120 Months

4.75 mm

0.187 in

0.027 "

0.69 mm

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant

1.22 m

4 ft

2.36 mm

0.093 in

EPS200 1" BL48"BX

Polyolefin (PO)

2 to 1

120 Months

25.4 mm

1 in

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant, Fluid Resistant

12.7 mm

0.5 in

0.046 in

1.17 mm

EPS-200-1 1/2-BLACK

Polyolefin (PO)

2 to 1

120 Months

38.1 mm

1.5 in

0.049 "

1.24 mm

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant

19.05 mm

0.75 "

1.22 m

4 ft

EPS200 11/2" BL48"BX

Polyolefin (PO)

2 to 1

120 Months

38.1 mm

1.5 in

0.049 "

1.24 mm

Tubing, Flexible

-55 °C

110 °C

121 °C

Black

27 °C, 80 °F

10 °C

Date of Manufacture

Adhesive Lined, Flame Retardant, Fluid Resistant

19.05 mm

0.75 "

1.22 m

4 ft

Part	Material	Shrinkage Ratio	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life Start	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Length	Length	Length	Inner Diameter - Recovered	Length [x]	Recovered Wall Thickness	Length	Inner Diameter - Recovered	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
3M EPS200 1/8" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	3.18 mm	0.125 "	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	1.57 mm	0.062 in	1.22 m	4 ft
3M EPS-200 1/4"BL 48"BX	Polyolefin (PO)	2 to 1	120 Months	6.35 mm	0.25 in		0.76 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant		0.125 in	1.22 m, 101.6 mm	0.333 ft, 4 ft	38.1 mm, 50.8 mm	1.5 ", 2 "	0.125 ', 0.167 '	3.18 mm	4 "	0.03 "
3M EPS-200 1 1/2" BL 48"BX	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	19.05 mm	0.75 "	101.6 mm	0.333 ft	19.05 mm, 25.4 mm, 76.2 mm, 152.4 mm	0.75 ", 1 in, 3 ", 6 "	0.062 ', 0.083 ft, 0.25 ft		4 "		0.5 '
3M EPS200 3/16" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	4.75 mm	0.187 in	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant			1.22 m	4 ft				2.36 mm				0.093 in
3M EPS200-1-48"-BLACK-24 PCS	Polyolefin (PO)	2 to 1	120 Months	25.4 mm	1 in			Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant	12.7 mm	0.5 in	1.22 m	4 ft									0.046 in	1.17 mm
3M EPS-200 3/4" BL48"BX	Polyolefin (PO)	2 to 1	120 Months			0.037 in	0.94 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	9.53 mm	0.375 in	1.22 m	4 ft	19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm	0.75 ", 1 in, 1.5 ", 2 ", 3 "	0.062 ', 0.083 ft, 0.125 ', 0.167 ', 0.25 ft
3M EPS200-3/16-48"-BLACK-250 PCS	Polyolefin (PO)	2 to 1	120 Months	4.75 mm	0.187 in	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant			1.22 m	4 ft				2.36 mm				0.093 in
3M EPS200 1" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	25.4 mm	1 in			Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	12.7 mm	0.5 in											0.046 in	1.17 mm
3M EPS-200-1 1/2-BLACK	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant	19.05 mm	0.75 "	1.22 m	4 ft
3M EPS200 11/2" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	19.05 mm	0.75 "	1.22 m	4 ft
