EPS200 3/16" BL48"BX

Active

EPS200 HTSHRNK AD BK 3/16"X1'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Heat Shrink EPS200 +1

EPS200 3/16" BL48"BX

Active

EPS200 HTSHRNK AD BK 3/16"X1'

Deep-Dive with AI

DocumentsDatasheet Heat Shrink EPS200 +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EPS-200 Series

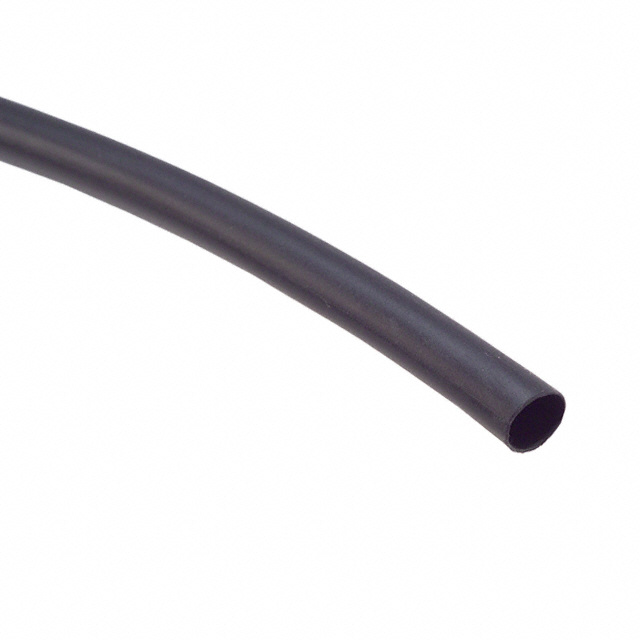

Heat Shrink Tubing, Flexible 0.187" (4.75mm) 2 to 1 Black 1.00' (304.80mm, 12.00")

Documents

Technical documentation and resources

Datasheet

Heat Shrink EPS200

Datasheet

Heat Shrink Tubing and Devices Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPS200 3/16" BL48"BX	EPS-200 Series

Color	Black	Black
Features	Flame Retardant, Fluid Resistant, Adhesive Lined	Flame Retardant, Fluid Resistant, Adhesive Lined
Inner Diameter - Recovered	2.36 mm	2.36 - 3.18 mm
Inner Diameter - Recovered	0.093 in	0.093 in
Inner Diameter - Recovered	-	1.57 - 25.4 mm
Inner Diameter - Recovered	-	0.062 - 1 in
Inner Diameter - Supplied [diameter]	4.75 mm	3.18 - 50.8 mm
Inner Diameter - Supplied [diameter]	0.187 in	0.125 - 2 "
Length	-	19.05 - 152.4 mm
Length	-	0.75 - 6 "
Length	-	0.062 - 0.25 '
Length	-	4 "
Length	-	0.5 '
Length [x]	1.22 m	1.22 - 609.6 m
Length [x]	4 ft	0.333 - 4 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.027 "	0.027 - 0.06 "
Recovered Wall Thickness	0.69 mm	0.69 - 1.52 mm
Recovered Wall Thickness	-	0.03 "
Recovered Wall Thickness	-	0.046 in
Recovered Wall Thickness	-	1.17 mm
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	121 °C	121 °C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

EPS-200 Series

HEATSHRINK 1/8"X4'(8')EPS200 BLK

Part	Material	Shrinkage Ratio	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life Start	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Length	Length	Length	Inner Diameter - Recovered	Length [x]	Recovered Wall Thickness	Length	Inner Diameter - Recovered	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
3M EPS200 1/8" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	3.18 mm	0.125 "	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	1.57 mm	0.062 in	1.22 m	4 ft
3M EPS-200 1/4"BL 48"BX	Polyolefin (PO)	2 to 1	120 Months	6.35 mm	0.25 in		0.76 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant		0.125 in	1.22 m, 101.6 mm	0.333 ft, 4 ft	38.1 mm, 50.8 mm	1.5 ", 2 "	0.125 ', 0.167 '	3.18 mm	4 "	0.03 "
3M EPS-200 1 1/2" BL 48"BX	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	19.05 mm	0.75 "	101.6 mm	0.333 ft	19.05 mm, 25.4 mm, 76.2 mm, 152.4 mm	0.75 ", 1 in, 3 ", 6 "	0.062 ', 0.083 ft, 0.25 ft		4 "		0.5 '
3M EPS200 3/16" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	4.75 mm	0.187 in	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant			1.22 m	4 ft				2.36 mm				0.093 in
3M EPS200-1-48"-BLACK-24 PCS	Polyolefin (PO)	2 to 1	120 Months	25.4 mm	1 in			Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant	12.7 mm	0.5 in	1.22 m	4 ft									0.046 in	1.17 mm
3M EPS-200 3/4" BL48"BX	Polyolefin (PO)	2 to 1	120 Months			0.037 in	0.94 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	9.53 mm	0.375 in	1.22 m	4 ft	19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm	0.75 ", 1 in, 1.5 ", 2 ", 3 "	0.062 ', 0.083 ft, 0.125 ', 0.167 ', 0.25 ft
3M EPS200-3/16-48"-BLACK-250 PCS	Polyolefin (PO)	2 to 1	120 Months	4.75 mm	0.187 in	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant			1.22 m	4 ft				2.36 mm				0.093 in
3M EPS200 1" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	25.4 mm	1 in			Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	12.7 mm	0.5 in											0.046 in	1.17 mm
3M EPS-200-1 1/2-BLACK	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant	19.05 mm	0.75 "	1.22 m	4 ft
3M EPS200 11/2" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	19.05 mm	0.75 "	1.22 m	4 ft
