5-104966-1
ActiveTE Connectivity AMP Connectors

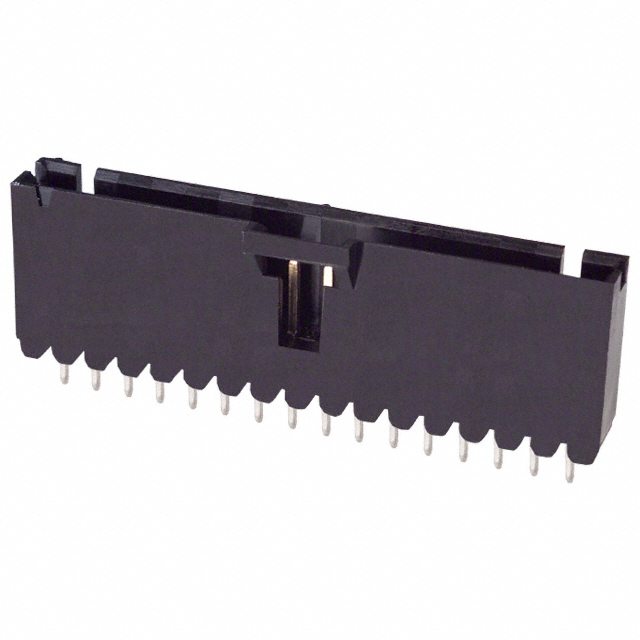

CONN HEADER VERT 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-104966-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 16POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-104966-1 |
|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 13.6 mm |
| Insulation Height | 0.535 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 546 | $ 4.87 | |
104966 Series
CONN HEADER VERT 16POS 2.54MM
| Part | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Connector Type | Contact Finish - Post | Number of Positions | Insulation Material | Fastening Type | Contact Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Insulation Color | Material Flammability Rating | Applications | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Contact Finish - Mating | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Material | Contact Length - Mating [x] | Contact Length - Mating | Number of Rows | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104966-1 | Through Hole | 2.54 µm | 100 µin | Solder | Header | Tin | 16 | Liquid Crystal Polymer (LCP) | Latch Holder | Male Pin | 0.1 in | 2.54 mm | All | Black | UL94 V-0 | Automotive, General Purpose, Medical, Telecommunications | Board to Board, Cable | 15 µin | 0.38 µm | Shrouded - 4 Wall | Gold | 13.6 mm | 0.535 in | -65 ░C | 105 ░C | Keying Slot | Brass | 0.23 in | 5.84 mm | 1 | Square |
Description
General part information
104966 Series
Connector Header Through Hole 16 position 0.100" (2.54mm)
