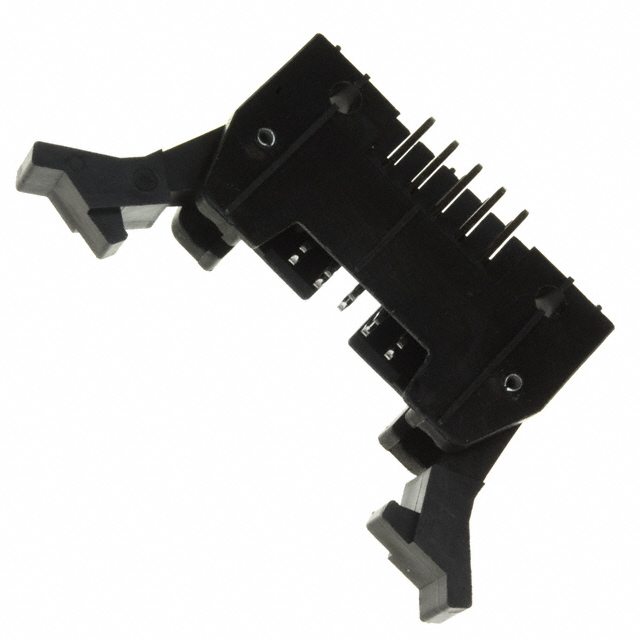

RA-H101TD-1190

Active

JST Sales America Inc.

CONN HEADER VERT 10POS 2.54MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 10POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	RA-H101TD-1190

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.689 in
Insulation Height	17.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

Part	Shrouding	Number of Rows	Connector Type	Insulation Height	Insulation Height	Material Flammability Rating	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Color	Insulation Material	Features	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Fastening Type	Contact Type	Contact Length - Post	Contact Length - Post	Mounting Type	Style	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Shape
JST Sales America Inc. RA-H101TD-1190	Shrouded - 4 Wall	2	Header	0.689 in	17.5 mm	UL94 V-0	Brass	0.1 in	2.54 mm	All	Black	Polybutylene Terephthalate (PBT) Glass Filled	Keying Slot	Tin	2.54 mm	0.1 in	Solder	Latch Lock/Eject Hooks Long	Male Pin	0.118 in	3 mm	Through Hole	Board to Cable/Wire	300 VDC	105 ░C	-55 °C	10	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 10 position 0.100" (2.54mm)
