M1KXK-2636J

Active

3M (TC)

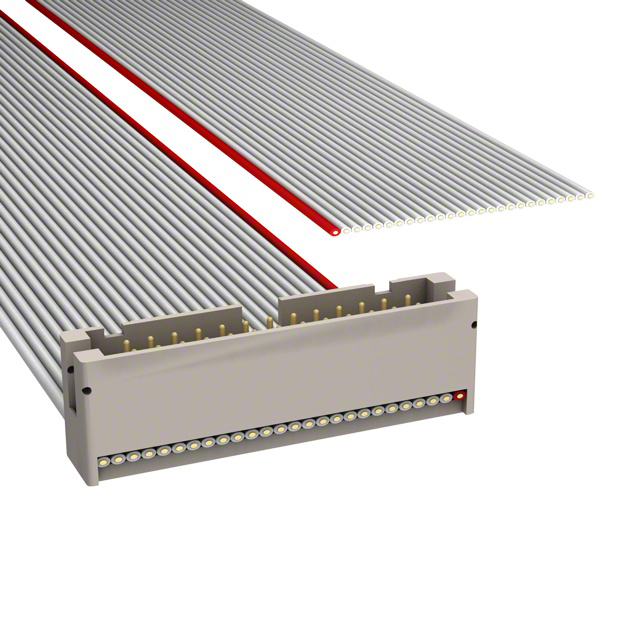

IDC CABLE - MPK26K/MC26G/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Ribbon Cable Assembly Length Guide +1

M1KXK-2636J

Active

3M (TC)

IDC CABLE - MPK26K/MC26G/X

Deep-Dive with AI

Documents3365 Series Datasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1KXK-2636J

Cable Termination	IDC
Connector Type	Plug to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1KXK Series

Part	Color	Number of Rows	Number of Positions	Contact Finish	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Features	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]	Cable Termination
3M (TC) M1KXK-3440K	Multiple Twisted Pair (Flat)	2	34	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	1.02 m	3.34 ft	IDC
3M (TC) M1KXK-6436J		2	64	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-3436J		2	34	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-3036J		2	30	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-6036R	Multiple Ribbon	2	60	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-3436R	Multiple Ribbon	2	34	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-1436R	Multiple Ribbon	2	14	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-6436R	Multiple Ribbon	2	64	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-6036J		2	60	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC
3M (TC) M1KXK-2636J		2	26	Gold	Plug to Cable	0.76 Ám	30 Áin	Unshielded	Polarizing Key	0.1 in	2.54 mm	0.05 "	1.27 mm	914.4 mm	3 ft	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.43
		10	$ 14.18
		25	$ 12.83
		50	$ 11.92
		100	$ 11.09
		250	$ 10.11
		500	$ 9.45
		1000	$ 8.86

Description

General part information

M1KXK Series

26 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
