2213600-5
ActiveTE Connectivity Raychem Cable Protection

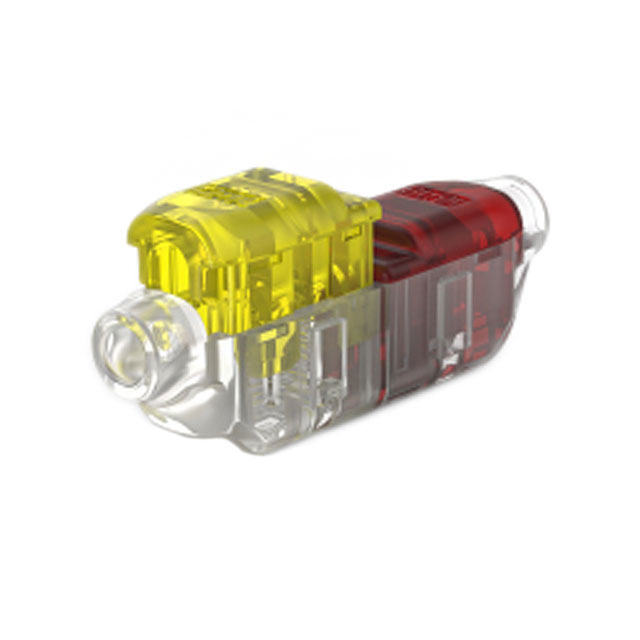

COOLSPLICE LW 12/14 TO 16/18 AWG
Deep-Dive with AI
Search across all available documentation for this part.
2213600-5
ActiveTE Connectivity Raychem Cable Protection
COOLSPLICE LW 12/14 TO 16/18 AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2213600-5 |
|---|---|
| Color | Translucent - Red, Translucent - Yellow |
| Features | Step Up/Step Down |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Butt Splice, Inline, Individual Openings |
| Termination | IDC |
CoolSplice Connectors Series
| Part | Insulation | Wire Gauge [Min] | Wire Gauge [Max] | Color | Termination | Terminal Type | Number of Wire Entries | Features |
|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Fully Insulated | 20 AWG | 22 AWG | Translucent - Green | IDC | Butt Splice Individual Openings Inline | 4 | |
TE Connectivity Raychem Cable Protection | Fully Insulated | Translucent - Blue Translucent - Red | IDC | Butt Splice Individual Openings Inline | 2 | Step Up/Step Down | ||
TE Connectivity Raychem Cable Protection | Fully Insulated | Translucent - Red Translucent - Yellow | IDC | Butt Splice Individual Openings Inline | 2 | Step Up/Step Down | ||
TE Connectivity Raychem Cable Protection | Fully Insulated | Translucent - Red Translucent - Yellow | IDC | Butt Splice Individual Openings Inline | 2 | Step Up/Step Down |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.83 | |
| 10 | $ 1.67 | |||
| 39 | $ 1.62 | |||
| 78 | $ 1.61 | |||
| 117 | $ 1.49 | |||
| 273 | $ 1.47 | |||
| 507 | $ 1.34 | |||
| 1014 | $ 1.20 | |||
| 2535 | $ 1.11 | |||
Description
General part information
CoolSplice Connectors Series
Butt Splice, 12 – 14 AWG / 16 – 18 AWG, 1.5 – .75 mm² / 4 – 2.5 mm² Wire, Sealable, 2 Splice Capacity, End Feed, CoolSplice Connectors
