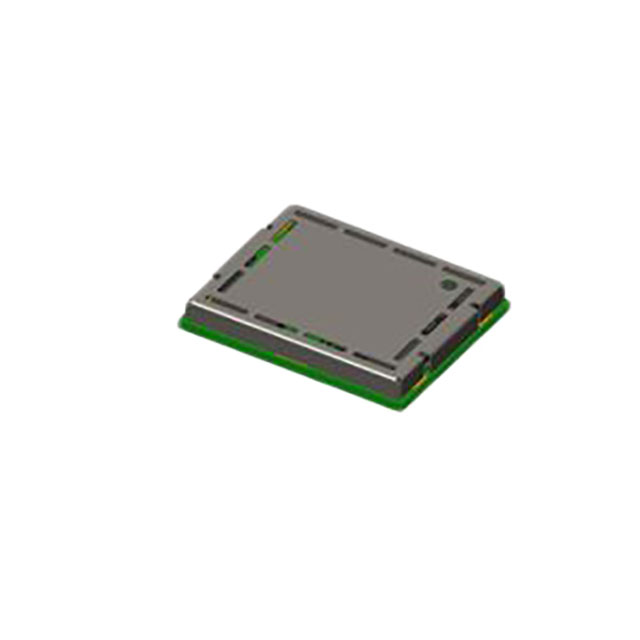

HL7802_1104889

Active

Sierra Wireless

RF TXRX MOD CELL NAV SMD

Search across all available documentation for this part.

Active

Sierra Wireless

RF TXRX MOD CELL NAV SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HL7802_1104889	HL7802 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Data Rate	375 kbps	375 kbps
Frequency	1900 MHz, 1800 MHz, 900 MHz, 850 MHz	850 - 1900 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Protocol	4G LTE CAT-M1/NB1, GPRS, GLONASS, GSM, GPS	4G LTE CAT-M1/NB1, GPRS, GLONASS, GSM, GPS
RF Family/Standard	Cellular, Navigation	Cellular, Navigation
Serial Interfaces	GPIO, UART, USB, ADC	GPIO, UART, USB, ADC
Utilized IC / Part	HL7802	HL7802

RF TXRX MOD CELL NAV SMD

Part	Protocol	RF Family/Standard	Data Rate	Antenna Type	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Utilized IC / Part	Serial Interfaces	Mounting Type
Sierra Wireless HL7802_1104889	4G LTE CAT-M1/NB1, GLONASS, GPRS, GPS, GSM	Cellular, Navigation	375 kbps	Antenna Not Included	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	85 °C	-40 °C	Module	HL7802	ADC, GPIO, UART, USB	Surface Mount
Sierra Wireless HL7802_1104845	4G LTE CAT-M1/NB1, GLONASS, GPRS, GPS, GSM	Cellular, Navigation	375 kbps	Antenna Not Included	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	85 °C	-40 °C	Module	HL7802	ADC, GPIO, UART, USB	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 40.73
	Digi-Reel®	1	$ 40.73
	Tape & Reel (TR)	750	$ 23.93

General part information

Cellular, Navigation 4G LTE CAT-M1/NB1, GLONASS, GPRS, GPS, GSM Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount
