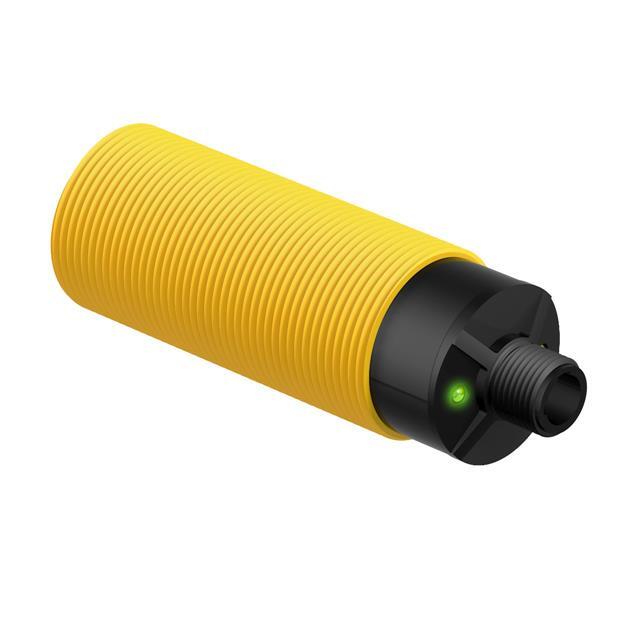

S30RW3RQ1

Active

BANNER ENGINEERING

EZ-BEAM S30 SERIES: RECEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ-BEAM S30 SERIES: RECEIVER

Technical Specifications

Parameters and characteristics for this part

Part	Connection Method	Sensing Method	Output Configuration	Ingress Protection	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Light Source	Operating Temperature [Min]	Operating Temperature [Max]	Cable Length	Cable Length
BANNER ENGINEERING S30RW3RQ1	Connector	Through-Beam	Dark-On	IEC IP69K NEMA 6P	16 ms	20 VAC	250 VAC	60 m	196.85 ft	Infrared (950nm)	-40 °C	70 °C
BANNER ENGINEERING S30RW3FF400	Cable	Background Suppression	Dark-On	NEMA 6P IEC IP69K	16 ms	20 VAC	250 VAC	400 mm	15.748 in	Infrared	-40 °C	70 °C	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 150.00
Newark	Each	1	$ 150.00

General part information

Through-Beam Optical Sensor 196.85' (60m) Dark-On
