DCU-08PMDS-LC7001

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A+2A, 08 PINS, MALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, CIRCULAR, 2 POINTS LOCK, SO

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A+2A, 08 PINS, MALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, CIRCULAR, 2 POINTS LOCK, SO

Technical Specifications

Parameters and characteristics for this part

Part	Color	Shielding	Contact Finish - Mating	Shell Size - Insert	Connector Type	Contact Material	Fastening Type	Insert Material	Mounting Feature	Voltage Rating	Number of Positions [custom]	Number of Positions	Number of Positions [custom]	Current Rating (Amps)	Primary Material	Ingress Protection	Orientation	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol LTW DCU-08PMDS-LC7001	Black	Unshielded	Gold	D	Male Pins Receptacle	Copper Alloy	Bayonet Lock	Thermoplastic	Bulkhead - Front Side Nut	250 VDC	5	8	3	2 A 20 A	Plastic	IP67 - Dust Tight Waterproof	Keyed	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

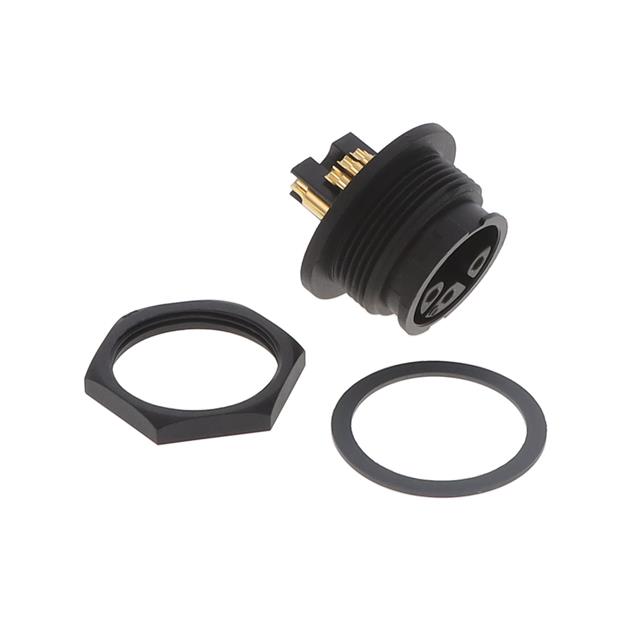

8 (5 + 3 Power) Position Circular Connector Receptacle, Male Pins Solder Cup
