AL9910AEV1

Active

Diodes Inc

EVAL BOARD FOR AL9910A

Search across all available documentation for this part.

Active

Diodes Inc

EVAL BOARD FOR AL9910A

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Max]	Frequency [Min]	Number of Outputs	Dimming	Mounting Type	Type	Topology	Package / Case	Package / Case	Package / Case	Applications	Voltage - Supply (Min) [Min]	Voltage - Supply (Max) [Max]	Outputs and Type	Current - Output / Channel	Supplied Contents	Voltage - Output	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case [y]	Package / Case [x]	Current - Output / Channel [custom]	Outputs and Type
Diodes Inc AL9910-5SP-13	8-SO-EP	105 °C	-40 °C	300 kHz	25 kHz	1	Analog PWM	Surface Mount	AC DC Offline Switcher	Step-Down (Buck) Step-Up (Boost)	0.154 in	8-SOIC	3.9 mm	Backlight Lighting Signage	15 V	500 V
Diodes Inc AL9910SP-13	8-SO-EP	105 °C	-40 °C	300 kHz	25 kHz	1	Analog PWM	Surface Mount	AC DC Offline Switcher	Step-Down (Buck) Step-Up (Boost)	0.154 in	8-SOIC	3.9 mm	Backlight Lighting Signage	15 V	500 V
Diodes Inc AL9910AEV1																	1 Non-Isolated Output	140 mA	Board(s)	51 V	AL9910A	240 VAC	100 VAC
Diodes Inc AL9910S-13	8-SO	85 °C	-40 °C	300 kHz	25 kHz	1	Analog PWM	Surface Mount	AC DC Offline Switcher	Step-Down (Buck) Step-Up (Boost)		8-SOIC		Backlight Lighting Signage	15 V	500 V								3.9 mm	0.154 in
Diodes Inc AL9910EV5																	1 Non-Isolated Output		Board(s)		AL9910A	277 VAC	85 VAC			240 mA
Diodes Inc AL9910EV6																	Non-Isolated	75 mA	Board(s)		AL9910A	132 VAC	90 VAC				4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.11

General part information

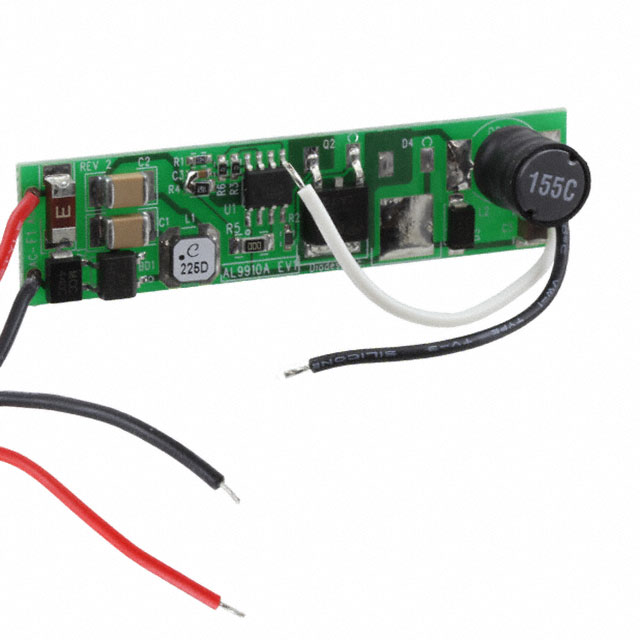

AL9910A - 1 Non-Isolated Output LED Driver Evaluation Board
