ANT-315-HETH
ActiveTE Connectivity Linx

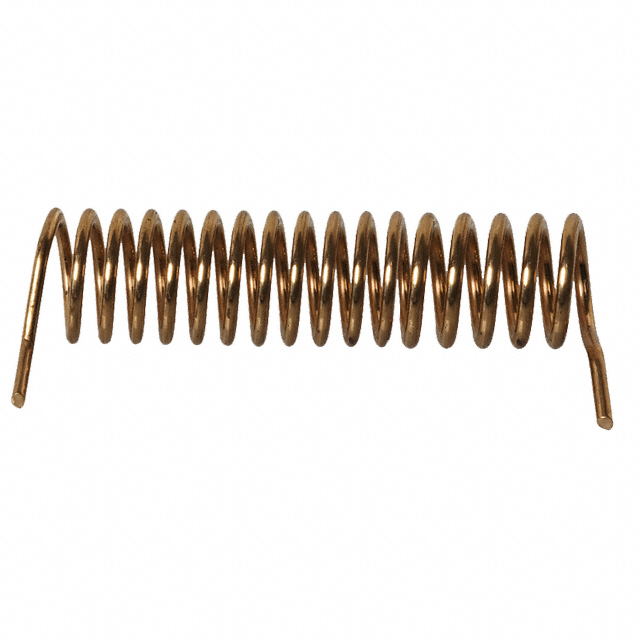

RF ANT 315MHZ HELICAL SLD TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-315-HETH
ActiveTE Connectivity Linx
RF ANT 315MHZ HELICAL SLD TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANT-315-HETH | ANT-315 Series |
|---|---|---|
| Antenna Type | Helical | Chip, Whip, Straight, Tilt, Whip, Helical |
| Applications | ISM, Alarms, Security Systems, Remote Control | ISM, Alarms, Security Systems, Remote Control |
| Frequency (Center/Band) | 315 MHz | 315 MHz |
| Frequency Group [Max] | 1 GHz | 1 GHz |
| Frequency Group [Min] | 300 MHz | 300 MHz |
| Frequency Range [Max] | 325 MHz | 317 - 325 MHz |
| Frequency Range [Min] | 305 MHz | 304 - 312 MHz |
| Gain | - | -4 - 0 dBi |
| Height (Max) | 8.89 mm | 8.89 - 131.57 mm |
| Height (Max) | - | 1.5 - 142 mm |
| Height (Max) | - | 117 mm |
| Height (Max) | - | 2.106 - 4.606 in |
| Height (Max) [Max] | 0.35 in | 0.059 - 5.591 in |
| Mounting Type | Through Hole | Surface Mount, Connector Mount, Through Hole |
| Number of Bands | 1 | 1 |
| RF Family/Standard | General ISM | General ISM |
| Termination | Solder | Solder, RP-SMA Male, Screw-Mount |
| VSWR | 2 | 1.9 - 2 |
ANT-315 Series
RF ANT 315MHZ CHIP SOLDER SMD
| Part | Height (Max) [Max] | Height (Max) [Max] | RF Family/Standard | VSWR | Antenna Type | Frequency Group [Max] | Frequency Group [Min] | Mounting Type | Number of Bands | Applications | Termination | Frequency Range [Min] | Frequency Range [Max] | Frequency (Center/Band) | Gain | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx ANT-315-SP | 1.5 mm | 0.059 in | General ISM | 1.9 | Chip | 1 GHz | 300 MHz | Surface Mount | 1 | Alarms, ISM, Remote Control, Security Systems | Solder | 312 MHz | 317 MHz | 315 MHz | ||||
TE Connectivity Linx ANT-315-CW-HW | 120 mm | 4.724 " | General ISM | 2 | Whip, Straight | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms, ISM, Remote Control, Security Systems | RP-SMA Male | 304 MHz | 325 MHz | 315 MHz | 0 dBi | |||
TE Connectivity Linx ANT-315-CW-HD | General ISM | 2 | Whip, Straight | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms, ISM, Remote Control, Security Systems | RP-SMA Male | 310 MHz | 320 MHz | 315 MHz | 117 mm | 4.606 in | ||||
TE Connectivity Linx ANT-315-PW-RA | 5.18 in | General ISM | 2 | Tilt, Whip | 1 GHz | 300 MHz | 1 | Alarms, ISM, Remote Control, Security Systems | Screw-Mount | 315 MHz | 131.57 mm | |||||||
TE Connectivity Linx ANT-315-HESM | 0.35 in | General ISM | 2 | Helical | 1 GHz | 300 MHz | Surface Mount | 1 | Alarms, ISM, Remote Control, Security Systems | Solder | 305 MHz | 325 MHz | 315 MHz | 8.89 mm | ||||
TE Connectivity Linx ANT-315-CW-HWR-SMA | 142 mm | 5.591 in | General ISM | 2 | Tilt, Whip | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms, ISM, Remote Control, Security Systems | 305 MHz | 325 MHz | 315 MHz | 0 dBi | ||||
TE Connectivity Linx ANT-315-CW-RH | 2.008 in | General ISM | 1.9 | Whip, Straight | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms, ISM, Remote Control, Security Systems | RP-SMA Male | 310 MHz | 320 MHz | 315 MHz | 51 mm | ||||
TE Connectivity Linx ANT-315-PW-LP | 1.988 in | General ISM | 1.9 | Whip, Straight | 1 GHz | 300 MHz | 1 | Alarms, ISM, Remote Control, Security Systems | Screw-Mount | 315 MHz | -4 dBi | 50.5 mm | ||||||
TE Connectivity Linx ANT-315-CW-HWR-RPS | 142 mm | 5.591 in | General ISM | 2 | Tilt, Whip | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms, ISM, Remote Control, Security Systems | RP-SMA Male | 305 MHz | 325 MHz | 315 MHz | 0 dBi | |||
TE Connectivity Linx ANT-315-CW-RCS | 53.5 mm | General ISM | 2 | 1 GHz | 300 MHz | Connector Mount | 1 | Alarms, ISM, Remote Control, Security Systems | RP-SMA Male | 310 MHz | 320 MHz | 315 MHz | 2.106 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.41 | |
| 250 | $ 1.29 | |||
| 500 | $ 1.11 | |||
| 1000 | $ 0.99 | |||
| 2000 | $ 0.90 | |||
Description
General part information
ANT-315 Series
RF ANTENNA Alarms, ISM, Remote Control, Security Systems Helical Solder Through Hole
