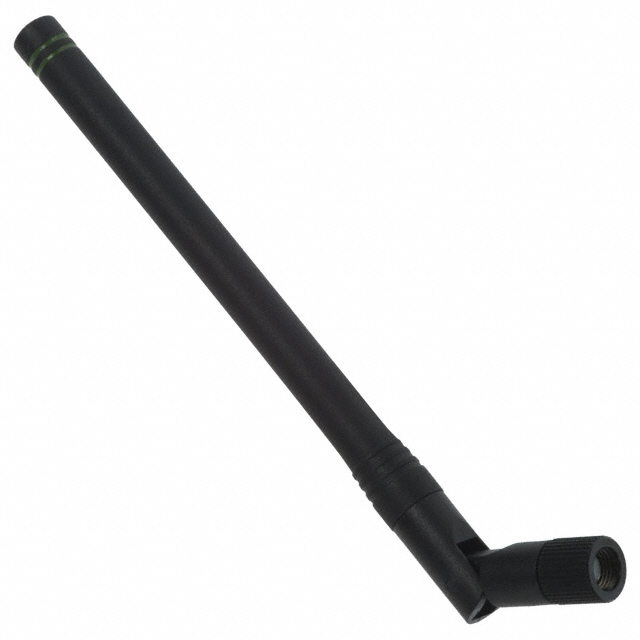

ANT-315-CW-HWR-RPS

Active

TE Connectivity Linx

RF ANT 315MHZ WHIP TILT RP-SMA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANT-315-CW-HWR-RPS

Active

TE Connectivity Linx

RF ANT 315MHZ WHIP TILT RP-SMA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT-315-CW-HWR-RPS	ANT-315 Series

Antenna Type	Tilt, Whip	Chip, Whip, Straight, Tilt, Whip, Helical
Applications	ISM, Alarms, Security Systems, Remote Control	ISM, Alarms, Security Systems, Remote Control
Frequency (Center/Band)	315 MHz	315 MHz
Frequency Group [Max]	1 GHz	1 GHz
Frequency Group [Min]	300 MHz	300 MHz
Frequency Range [Max]	325 MHz	317 - 325 MHz
Frequency Range [Min]	305 MHz	304 - 312 MHz
Gain	0 dBi	-4 - 0 dBi
Height (Max)	-	117 mm
Height (Max)	-	2.106 - 4.606 in
Height (Max)	-	8.89 - 131.57 mm
Height (Max) [Max]	142 mm	1.5 - 142 mm
Height (Max) [Max]	5.591 in	0.059 - 5.591 in
Mounting Type	Connector Mount	Surface Mount, Connector Mount, Through Hole
Number of Bands	1	1
RF Family/Standard	General ISM	General ISM
Termination	RP-SMA Male	Solder, RP-SMA Male, Screw-Mount
VSWR	2	1.9 - 2

ANT-315 Series

RF ANT 315MHZ CHIP SOLDER SMD

Part	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	VSWR	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Mounting Type	Number of Bands	Applications	Termination	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Gain	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Height (Max)
TE Connectivity Linx ANT-315-SP	1.5 mm	0.059 in	General ISM	1.9	Chip	1 GHz	300 MHz	Surface Mount	1	Alarms, ISM, Remote Control, Security Systems	Solder	312 MHz	317 MHz	315 MHz
TE Connectivity Linx ANT-315-CW-HW	120 mm	4.724 "	General ISM	2	Whip, Straight	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	304 MHz	325 MHz	315 MHz	0 dBi
TE Connectivity Linx ANT-315-CW-HD			General ISM	2	Whip, Straight	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	310 MHz	320 MHz	315 MHz		117 mm	4.606 in
TE Connectivity Linx ANT-315-PW-RA		5.18 in	General ISM	2	Tilt, Whip	1 GHz	300 MHz		1	Alarms, ISM, Remote Control, Security Systems	Screw-Mount			315 MHz				131.57 mm
TE Connectivity Linx ANT-315-HESM		0.35 in	General ISM	2	Helical	1 GHz	300 MHz	Surface Mount	1	Alarms, ISM, Remote Control, Security Systems	Solder	305 MHz	325 MHz	315 MHz				8.89 mm
TE Connectivity Linx ANT-315-CW-HWR-SMA	142 mm	5.591 in	General ISM	2	Tilt, Whip	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems		305 MHz	325 MHz	315 MHz	0 dBi
TE Connectivity Linx ANT-315-CW-RH		2.008 in	General ISM	1.9	Whip, Straight	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	310 MHz	320 MHz	315 MHz				51 mm
TE Connectivity Linx ANT-315-PW-LP		1.988 in	General ISM	1.9	Whip, Straight	1 GHz	300 MHz		1	Alarms, ISM, Remote Control, Security Systems	Screw-Mount			315 MHz	-4 dBi			50.5 mm
TE Connectivity Linx ANT-315-CW-HWR-RPS	142 mm	5.591 in	General ISM	2	Tilt, Whip	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	305 MHz	325 MHz	315 MHz	0 dBi
TE Connectivity Linx ANT-315-CW-RCS	53.5 mm		General ISM	2		1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	310 MHz	320 MHz	315 MHz			2.106 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.36

Description

General part information

ANT-315 Series

315MHz Alarms, ISM, Remote Control, Security Systems Whip, Tilt RF Antenna 305MHz ~ 325MHz 0dBi RP-SMA Male Connector Mount
