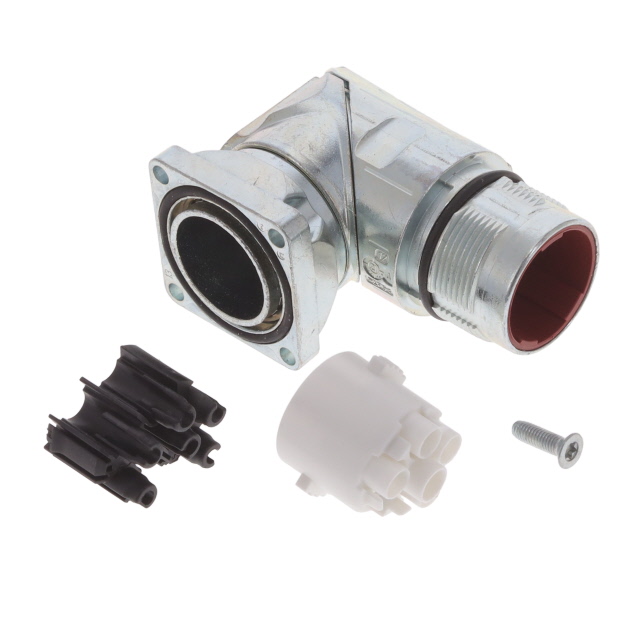

BGC106N00001200000
ActiveTE Intercontec
CONN RCPT HSG MALE 6P PNL MT RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BGC106N00001200000
ActiveTE Intercontec
CONN RCPT HSG MALE 6P PNL MT RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BGC106N00001200000 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Fastening Type | Push-Twist |
| Features | Backshell, Rotatable |
| Housing Color | Silver |
| Includes | 1 Backshell, 1 O-Ring, 1 Connector |
| Ingress Protection | IP66/IP67 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Mounting Type | Right Angle, Panel Mount |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Chromate |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-6 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.01 | |
| 10 | $ 19.27 | |||
| 40 | $ 17.85 | |||
| 80 | $ 17.25 | |||
| 280 | $ 16.30 | |||
| 520 | $ 15.82 | |||
Description
General part information
BGC10 Series
6 (5 Power + PE) Position Circular Connector Receptacle Housing Panel Mount, Right Angle Backshell, Rotatable
