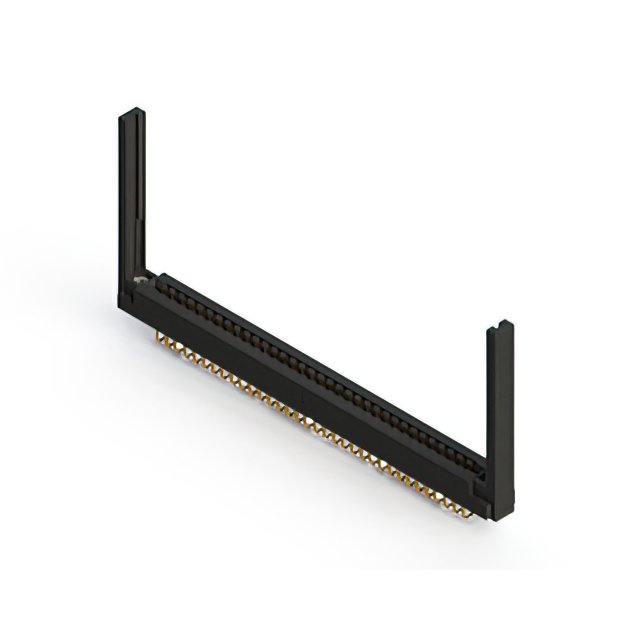

357-068-558-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 68POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-068-558-268
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 68POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-068-558-268 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
357-068 Series
...
| Part | Number of Rows | Contact Finish | Number of Positions | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Material - Insulation | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Type | Mounting Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Tin | 68 | Black | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Through Hole | Solder | |||
EDAC Inc. | 2 | Gold | 68 | Black | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Through Hole Right Angle | Solder Wire Wrap | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 2 | Tin | 68 | Black | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Through Hole Right Angle | Solder | |||||
EDAC Inc. | 2 | Gold | 68 | Black | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Board Edge Straddle Mount | Solder | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | Gold | 68 | Black | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Board Edge Straddle Mount | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | 2 | Gold | 68 | Black | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Through Hole | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Card Guides | ||
EDAC Inc. | 2 | Tin | 68 | Black | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Through Hole | Solder Eyelet(s) | |||
EDAC Inc. | 2 | Tin | 68 | Black | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Through Hole | Wire Wrap | |||||
EDAC Inc. | 2 | Gold | 68 | Black | Flush Mount M3 Threaded Insert Top Opening | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Board Edge Straddle Mount | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Card Extender | ||
EDAC Inc. | 2 | Tin | 68 | Black | 4-40 Flush Mount Threaded Insert Top Opening | Dual | 34 | 0.156 in | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Semi Bellows | Non Specified - Dual Edge | Through Hole | Solder | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 20.91 | |
Description
General part information
357-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
