1-1393738-0
ActiveTE Connectivity AMP Connectors

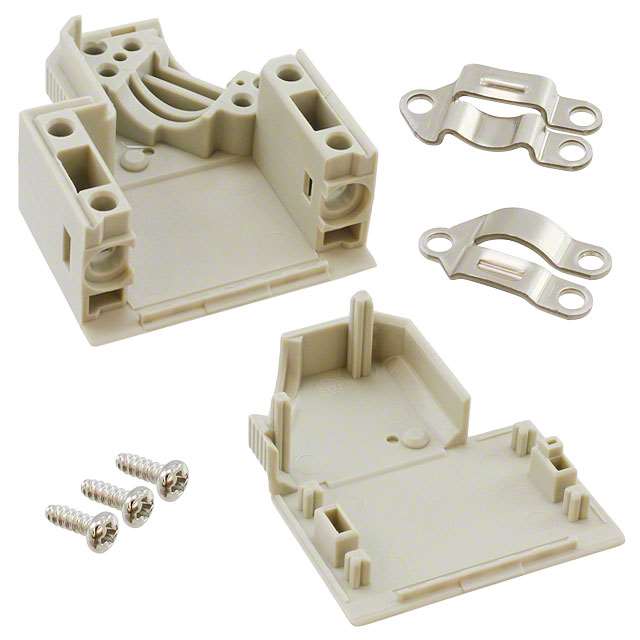

CONN BACKSHELL 9POS 37.5DEG GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1393738-0
ActiveTE Connectivity AMP Connectors
CONN BACKSHELL 9POS 37.5DEG GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1393738-0 | 1393738 Series |
|---|---|---|
| Accessory Type | Two Piece Backshell | Two Piece Backshell |
| Cable Exit | 37.5 ° | 37.5 ° |
| Cable Type | Round | Round |
| Color | Gray | Gray |
| Compatible D-Sub Size | HD15pos, 9pos | 50pos, HD78pos, HD15pos, 9pos, 37pos, HD62pos, HD44pos, 25pos |
| Compatible Shell Size | E | D, E, C, B |
| Material | Thermoplastic | Thermoplastic |
| Number of Positions | 9 | 9 - 50 |
| Plating | - | Nickel over Copper |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Shielded, Unshielded |
1393738 Series
CONN BACKSHELL 50P 37.5DEG SHLD
| Part | Plating | Compatible D-Sub Size | Cable Type | Cable Exit | Shielding | Accessory Type | Primary Material | Number of Positions | Compatible Shell Size | Color | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-1393738-3 | Nickel over Copper | 50pos, HD78pos | Round | 37.5 ° | Shielded | Two Piece Backshell | Plastic | 50 | D | Gray | |
TE Connectivity AMP Connectors 5-1393738-3 | 9pos, HD15pos | Round | 37.5 ° | Unshielded | Two Piece Backshell | Plastic | 9 | E | Gray | ||
TE Connectivity AMP Connectors 5-1393738-9 | Nickel over Copper | 9pos, HD15pos | Round | 37.5 ° | Shielded | Two Piece Backshell | Plastic | 9 | E | Gray | |
TE Connectivity AMP Connectors 6-1393738-2 | Nickel over Copper | 37pos, HD62pos | Round | 37.5 ° | Shielded | Two Piece Backshell | Plastic | 37 | C | Gray | |
TE Connectivity AMP Connectors 7-1393738-7 | 50pos, HD78pos | Round | 37.5 ° | Unshielded | Two Piece Backshell | Plastic | 50 | D | Gray | ||
TE Connectivity AMP Connectors 6-1393738-1 | Nickel over Copper | 25pos, HD44pos | Round | 37.5 ° | Shielded | Two Piece Backshell | Plastic | B | Gray | Thermoplastic | |
TE Connectivity AMP Connectors 1-1393738-0 | 9pos, HD15pos | Round | 37.5 ° | Unshielded | Two Piece Backshell | Plastic | 9 | E | Gray | Thermoplastic | |
TE Connectivity AMP Connectors 5-1393738-8 | 37pos, HD62pos | Round | 37.5 ° | Unshielded | Two Piece Backshell | Plastic | 37 | C | Gray | ||
TE Connectivity AMP Connectors 1393738-5 | Nickel over Copper | 50pos, HD78pos | Round | 37.5 ° | Shielded | Two Piece Backshell | Plastic | 50 | D | Gray | |
TE Connectivity AMP Connectors 1-1393738-2 | Round | 37.5 ° | Unshielded | Two Piece Backshell | Gray |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.84 | |
Description
General part information
1393738 Series
9 Position Two Piece Backshell Connector Gray 37.5° Unshielded
