EK-K7-KC705-G

Obsolete

AMD

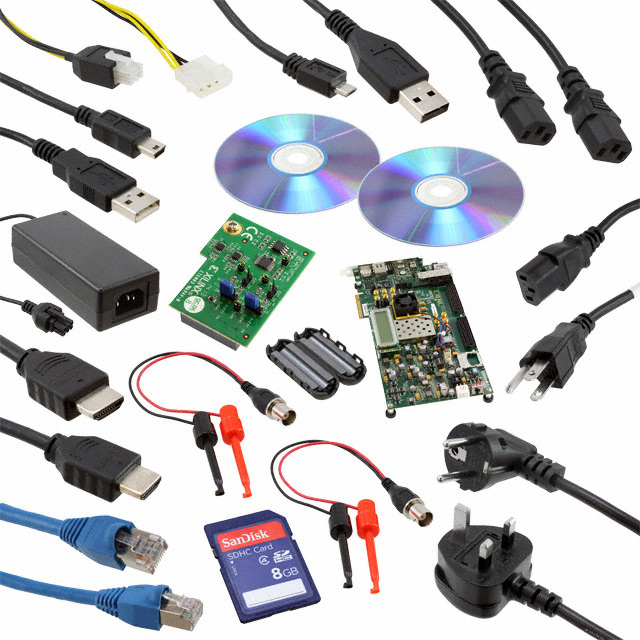

KINTEX-7 FPGA KC705 EVAL KIT

Search across all available documentation for this part.

Obsolete

AMD

KINTEX-7 FPGA KC705 EVAL KIT

Technical Specifications

Parameters and characteristics for this part

Specification	EK-K7-KC705-G

Contents	Cable(s), Board(s), Power Supply
For Use With/Related Products	XC7K325T
Interconnect System	FMC
Platform	Kintex-7 FPGA KC705 PCIe Card
Suggested Programming Environment	ISE
Utilized IC / Part	XC7K325T

Part	Interconnect System	Utilized IC / Part	Suggested Programming Environment	Contents	Note	Mounting Type	Total RAM Bits	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Number of Logic Elements/Cells	Number of I/O	Number of LABs/CLBs	Platform	For Use With/Related Products
AMD DK-K7-EMBD-G-J	FMC	XC7K325T	Vivado	Board(s) Cable(s)	J = Japan version does not ship with a power supply
AMD XC7K325T-L2FFG900E						Surface Mount	16404480	900-BBGA FCBGA	0.87 V	0.93 V	100 °C	0 °C	900-FCBGA (31x31)	326080	500	25475
AMD EK-K7-KC705-CES-G	FMC	XC7K325T	ISE	Board(s) Cable(s) Power Supply													Kintex-7 FPGA KC705 CES PCIe Card	XC7K325T
AMD XC7K325T-1FFG900I						Surface Mount	16404480	900-BBGA FCBGA	0.97 V	1.03 V	100 °C	-40 C	900-FCBGA (31x31)	326080	500	25475
AMD XC7K325T-L2FBG900I						Surface Mount	16404480	900-BBGA FCBGA	0.97 V	1.03 V	100 °C	-40 C	900-FCBGA (31x31)	326080	500	25475
AMD CK-K7-KC724-G-J		XC7K325T		Board(s) Cable(s)	J = Japan version does not ship with a power supply												Kintex-7 FPGA KC724 Japan	XC7K325T
AMD XC7K325T-2FF676I						Surface Mount	16404480		0.97 V	1.03 V	100 °C	-40 C	676-FCBGA (27x27)	326080	400	25475
AMD XC7K325T-2FBG676I						Surface Mount	16404480		0.97 V	1.03 V	100 °C	-40 C	676-FCBGA (27x27)	326080	400	25475
AMD EK-K7-KC705-G	FMC	XC7K325T	ISE	Board(s) Cable(s) Power Supply													Kintex-7 FPGA KC705 PCIe Card	XC7K325T
AMD XC7K325T-2FFG676I						Surface Mount	16404480		0.97 V	1.03 V	100 °C	-40 C	676-FCBGA (27x27)	326080	400	25475

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Kintex-7 FPGA KC705 PCIe Card XC7K325T Kintex®-7 FPGA Evaluation Board
