IPT60R055CFD7XTMA1

Active

Infineon Technologies

COOLMOS™ CFD7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; TOLL HSOF-8 PACKAGE; 55 MOHM;

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Orderable Part Number OPN Translation Table

IPT60R055CFD7XTMA1

Active

Infineon Technologies

COOLMOS™ CFD7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; TOLL HSOF-8 PACKAGE; 55 MOHM;

Deep-Dive with AI

DocumentsDatasheet Orderable Part Number OPN Translation Table

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT60R055CFD7XTMA1

Current - Continuous Drain (Id) @ 25°C	44 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Input Capacitance (Ciss) (Max) @ Vds	2721 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerSFN
Rds On (Max) @ Id, Vgs	55 mOhm

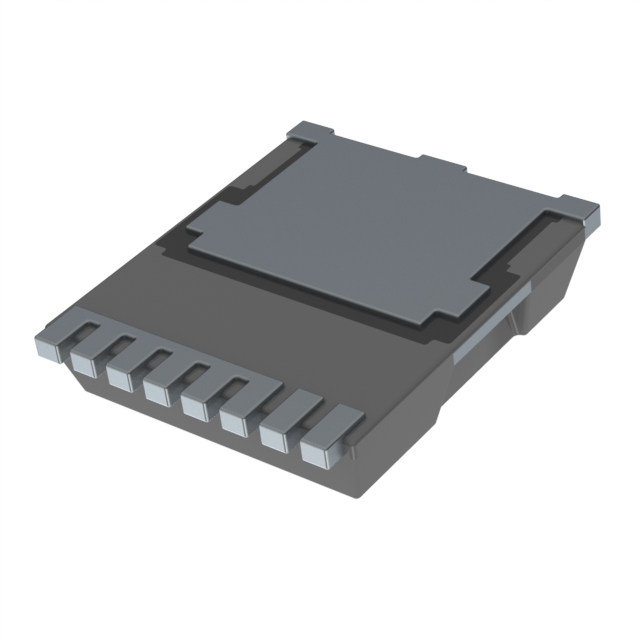

Supplier Device Package	PG-HSOF-8-2
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4.5 V

IPT60R055 Series

Part	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Mounting Type	Supplier Device Package	Drain to Source Voltage (Vdss)	Technology	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Package / Case	Vgs (Max)
Infineon Technologies IPT60R055CFD7XTMA1	10 V	55 mOhm	Surface Mount	PG-HSOF-8-2	600 V	MOSFET (Metal Oxide)	4.5 V	-55 °C	150 °C	N-Channel	2721 pF	44 A	8-PowerSFN	20 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 7.47
		10	$ 5.07
		100	$ 3.71
		500	$ 3.23
	Digi-Reel®	1	$ 7.47
		10	$ 5.07
		100	$ 3.71
		500	$ 3.23
	Tape & Reel (TR)	2000	$ 3.23
Newark	Each (Supplied on Cut Tape)	1	$ 7.31
		10	$ 5.03
		25	$ 4.98
		50	$ 4.33
		100	$ 3.67
		250	$ 3.45
		500	$ 3.23

Description

General part information

IPT60R055 Series

The600V CoolMOS™ CFD7is Infineon’s latest high-voltage superjunction MOSFET technology with integrated fast body diode, completing the CoolMOS™ 7 series. CoolMOS™ CFD7 comes with reduced gate charge (Qg), improved turn-off behavior and a reverse recovery charge (Qrr) of up to 69% lower compared to the competition, as well as the lowest reverse-recovery time (trr) in the market.
