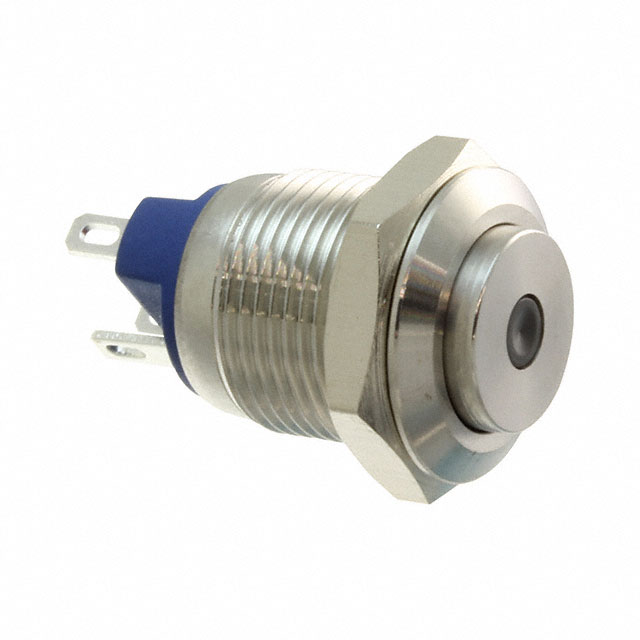

MAV0120/3D1RD024

Active

BULGIN LIMITED

SWITCH PUSH BUTTON N.O. SPST ROUND BUTTON 2A 36VDC MOMENTARY PANEL MOUNT SOLDER TAB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MAV0120/3D1RD024

Active

BULGIN LIMITED

SWITCH PUSH BUTTON N.O. SPST ROUND BUTTON 2A 36VDC MOMENTARY PANEL MOUNT SOLDER TAB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MAV0120/3D1RD024

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Features	Stainless Steel
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	36 VDC

MAV0120 Series

Part	Mechanical Life	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Circuit	Type	Ingress Protection	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Illumination Type, Color	Actuator Type	Actuator Marking	Color - Actuator/Cap	Switch Function	Termination Style	Features
BULGIN LIMITED MAV0120/3D2AM012	500000 Cycles	12 mm	2 A	36 VDC	Panel Mount Front	SPST-NO	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	12 VDC	55 °C	-25 °C	200000 Cycles	Amber LED	Button Round	No Marking	Silver	Off-Mom	Solder Lug	Stainless Steel
BULGIN LIMITED MAV0120/3D1BL024	500000 Cycles	12 mm	2 A	36 VDC	Panel Mount Front	SPST-NO	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	24 V	55 °C	-25 °C	200000 Cycles	Blue LED	Button Round	No Marking	Silver	Off-Mom	Solder Lug	Stainless Steel
BULGIN LIMITED MAV0120/3D2GN024	500000 Cycles	12 mm	2 A	36 VDC	Panel Mount Front	SPST-NO	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	24 V	55 °C	-25 °C	200000 Cycles	Green LED	Button Round	No Marking	Silver	Off-Mom	Solder Lug	Stainless Steel
BULGIN LIMITED MAV0120/3D1GN012	500000 Cycles	12 mm	2 A	36 VDC	Panel Mount Front	SPST-NO	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	12 VDC	55 °C	-25 °C	200000 Cycles	Green LED	Button Round	No Marking	Silver	Off-Mom	Solder Lug	Stainless Steel
BULGIN LIMITED MAV0120/3D1RD024	500000 Cycles	12 mm	2 A	36 VDC	Panel Mount Front	SPST-NO	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	24 V	55 °C	-25 °C	200000 Cycles	LED Red	Button Round	No Marking	Silver	Off-Mom	Solder Lug	Stainless Steel
BULGIN LIMITED MAV0120/3D1AM012	500000 Cycles	12 mm	2 A	36 VDC	Panel Mount Front	SPST-NO	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	12 VDC	55 °C	-25 °C	200000 Cycles	Amber LED	Button Round	No Marking	Silver	Off-Mom	Solder Lug	Stainless Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	3	$ 23.13
		15	$ 22.71
		29	$ 22.29
		50	$ 21.43
Digikey	Tray	1	$ 29.95
		10	$ 25.84
		25	$ 24.36
		40	$ 23.63
		80	$ 22.60
		230	$ 21.10
		440	$ 20.23

Description

General part information

MAV0120 Series

Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
