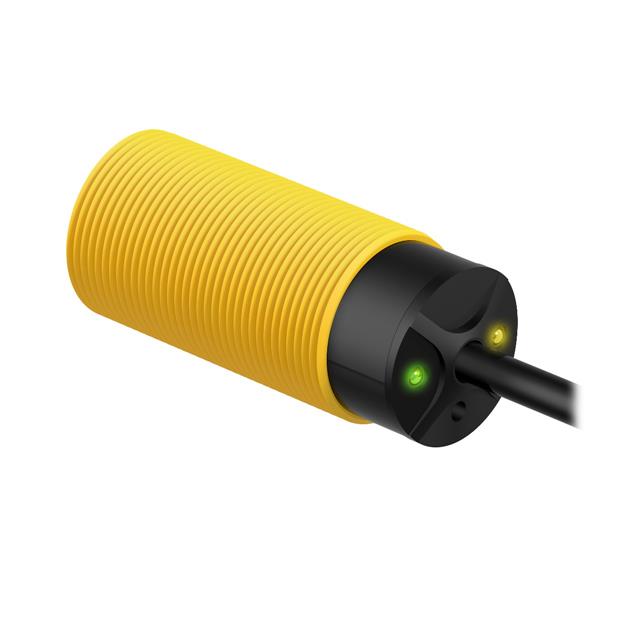

S30SP6FF600

Active

BANNER ENGINEERING

EZ-BEAM S30 SERIES: FIXED FIELD<

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ-BEAM S30 SERIES: FIXED FIELD<

Technical Specifications

Parameters and characteristics for this part

Specification	S30SP6FF600

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Infrared
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	3 ms
Sensing Distance	23.622 in
Sensing Distance	60 cm
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Distance	Sensing Distance	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Light Source	Connection Method	Cable Length	Cable Length
BANNER ENGINEERING S30SP6FF400Q	400 mm	15.748 in	3 ms	-40 °C	70 °C	PNP - Dark-ON/Light-ON	IP69K NEMA 6P	30 VDC	10 VDC	Background Suppression	Infrared LED	Connector
BANNER ENGINEERING S30SP6FF600	60 cm	23.622 in	3 ms	-40 °C	70 °C	PNP - Dark-ON/Light-ON - Selectable	NEMA 6P IEC IP67	30 VDC	10 VDC	Background Suppression	Infrared	Cable	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 139.00
Newark	Each	1	$ 139.00

General part information

Background Suppression Optical Sensor 23.622" (600mm) PNP - Dark-ON/Light-ON - Selectable
