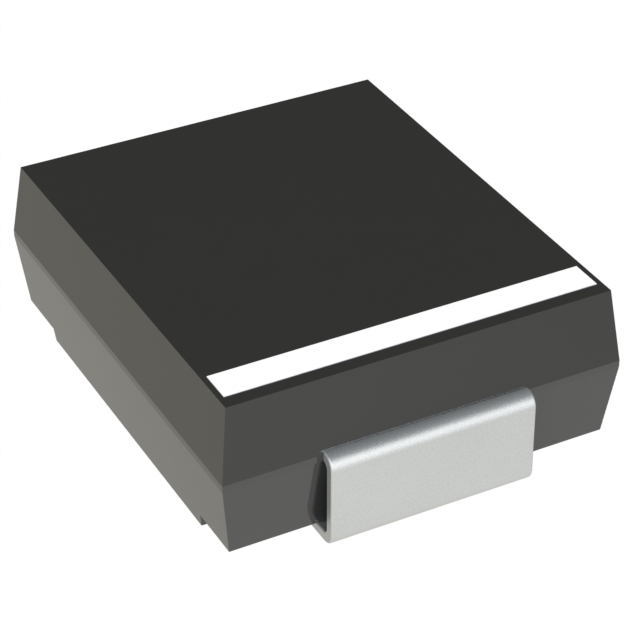

SMCJ60A/TR7

Active

YAGEO

SMCJ DO214AB, UNIDIRECTIONAL 60V

Search across all available documentation for this part.

Active

YAGEO

SMCJ DO214AB, UNIDIRECTIONAL 60V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMCJ60A/TR7	SMCJ60 Series

Applications	General Purpose	General Purpose
Bidirectional Channels	-	1
Grade	-	Automotive
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-65 °C	-65 - -55 °C
Package / Case	SMC, DO-214AB	SMC, DO-214AB
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Qualification	-	AEC-Q101
Supplier Device Package	DO-214AB (SMC)	DO-214AB (SMC)
Type	Zener	Zener
Unidirectional Channels [custom]	1	1
Voltage - Breakdown (Min) [Min]	66.7 V	66.7 V
Voltage - Clamping (Max) @ Ipp [Max]	96.8 V	96.8 V
Voltage - Reverse Standoff (Typ)	60 V	60 V

SMCJ DO214AB, UNIDIRECTIONAL 60V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Voltage - Breakdown (Min) [Min]	Package / Case	Unidirectional Channels [custom]	Mounting Type	Type	Power - Peak Pulse	Power - Peak Pulse	Applications	Grade	Qualification	Bidirectional Channels [custom]
YAGEO SMCJ60A/TR7	150 °C	-65 °C	DO-214AB (SMC)	96.8 V	60 V	66.7 V	DO-214AB, SMC	1	Surface Mount	Zener	1.5 kW	1500 W	General Purpose
YAGEO SMCJ60A-AT/TR13	150 °C	-55 °C	DO-214AB (SMC)	96.8 V	60 V	66.7 V	DO-214AB, SMC	1	Surface Mount	Zener	1.5 kW	1500 W		Automotive	AEC-Q101
YAGEO SMCJ60CA/TR7	150 °C	-65 °C	DO-214AB (SMC)	96.8 V	60 V	66.7 V	DO-214AB, SMC		Surface Mount	Zener	1.5 kW	1500 W	General Purpose			1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

96.8V Clamp 15.5A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
