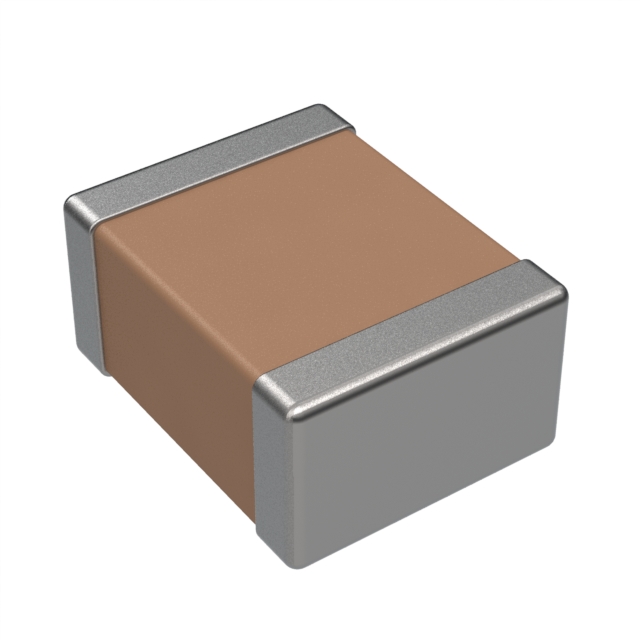

C1210F104K2RAC7800

Active

KEMET

CAP CER 0.1UF 200V X7R 1210

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C1210F104K2RACTU

C1210F104K2RAC7800

Active

KEMET

CAP CER 0.1UF 200V X7R 1210

Deep-Dive with AI

DocumentsDatasheet C1210F104K2RACTU

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1210F104K2RAC7800

Applications	General Purpose
Capacitance	100000 pF
Features	Open Mode
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1210
Package / Case	3225 Metric
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Temperature Coefficient	X7R
Thickness (Max) [Max]	1.4 mm
Thickness (Max) [Max] [custom]	0.055 in
Tolerance	10 %
Voltage - Rated	200 V

C1210F Series

Part	Temperature Coefficient	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Package / Case	Package / Case	Thickness (Max) [Max] [custom]	Thickness (Max) [Max]	Voltage - Rated [custom]	Capacitance	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max]	Thickness (Max)	Ratings	Voltage - Rated
KEMET C1210F475K4RAC7800	X7R	10 %	-55 °C	125 °C	General Purpose	MLCC Surface Mount	1210	3225 Metric	0.055 in	1.4 mm	16 V	4.7 µF	Open Mode	3.2 mm	2.5 mm	0.126 in	0.098 in
KEMET C1210F475M4RAC7800	X7R	20 %	-55 °C	125 °C	General Purpose	MLCC Surface Mount	1210	3225 Metric	0.055 in	1.4 mm	16 V	4.7 µF	Open Mode	3.2 mm	2.5 mm	0.126 in	0.098 in
KEMET C1210F475K3RACAUTO	X7R	10 %	-55 °C	125 °C	Automotive	MLCC Surface Mount	1210	3225 Metric				4.7 µF	Open Mode	3.2 mm	2.5 mm	0.126 in	0.098 in	0.075 in	1.9 mm	AEC-Q200	25 VDC
KEMET C1210F104K2RAC7800	X7R	10 %	-55 °C	125 °C	General Purpose	MLCC Surface Mount	1210	3225 Metric	0.055 in	1.4 mm		100000 pF	Open Mode	3.2 mm	2.5 mm	0.126 in	0.098 in				200 V
KEMET C1210F685K3RACAUTO	X7R	10 %	-55 °C	125 °C	Automotive	MLCC Surface Mount	1210	3225 Metric		2.8 mm		6.8 ÁF	Open Mode	3.2 mm	2.5 mm	0.126 in	0.098 in	0.11 in		AEC-Q200	25 VDC
KEMET C1210F105K1RACAUTO	X7R	10 %	-55 °C	125 °C	Automotive	MLCC Surface Mount	1210	3225 Metric		2.8 mm		1 µF	Open Mode	3.2 mm	2.5 mm	0.126 in	0.098 in	0.11 in		AEC-Q200	100 V
KEMET C1210F475M3RAC7800	X7R	20 %	-55 °C	125 °C	General Purpose	MLCC Surface Mount	1210	3225 Metric				4.7 µF	Open Mode	3.2 mm	2.5 mm	0.126 in	0.098 in	0.075 in	1.9 mm		25 VDC
KEMET C1210F105K5RAC7800	X7R	10 %	-55 °C	125 °C	General Purpose	MLCC Surface Mount	1210	3225 Metric		2.05 mm		1 µF	Open Mode	3.2 mm	2.5 mm	0.126 in	0.098 in	0.081 in			50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 0.23

Description

General part information

C1210F Series

0.1 µF ±10% 200V Ceramic Capacitor X7R 1210 (3225 Metric)

Documents

Technical documentation and resources
