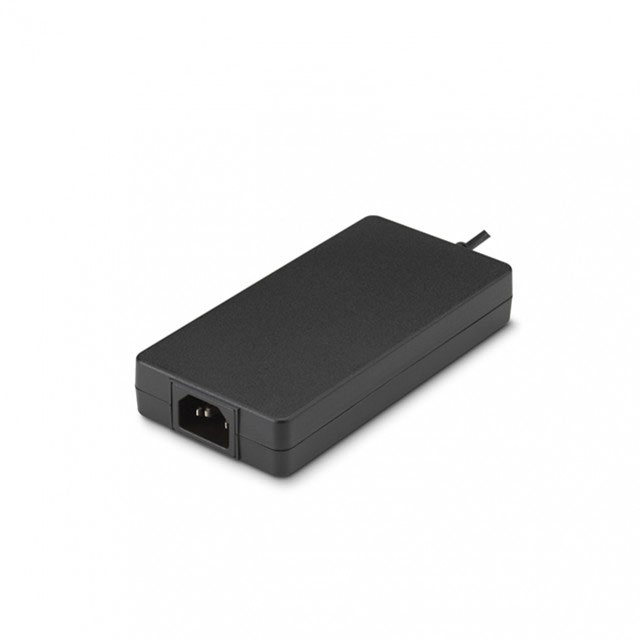

FSP120-AHAN3

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 12V 120W

Search across all available documentation for this part.

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 12V 120W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC DESKTOP ADAPTER 12V 120W

Part	Input Connector	Output Connector	Output Connector	Input Type	No Load Power Consumption	Cord Length	Cord Length	Approval Agency	Form	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Standard Number	Voltage - Output	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Features	Voltage - Isolation	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Dimming	Type	Termination Style	Topology	Efficiency	Voltage - Input (Min) [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [z]	Size / Dimension [y]
FSP Technology Inc. FSP120-AHAN3	IEC 320-C14	4 Pin	Power DIN	Cord	500 mW	1.5 m	59 in	CB, CCC, CE, cULus, FCC, GS, TUV, VCCI	Desktop (Class I)	10 A	120 W	International	ITE (Commercial)	5.96 "	75.6 mm	1 "	2.98 "	25.4 mm	151.3 mm	CoC Tier 2, Level VI	60950-1, 62368-1	12 V	Positive Center	90 VAC	264 VAC	70 °C	0 °C
FSP Technology Inc. FSP120-FZAE1(500)MG								CE, cULus		5 A	120 W			7.68 "	68 mm	1.53 in	2.68 "	38.8 mm	195 mm									IP65, IP67	OTP, OVP, SCP	500 V	Chassis Mount	1	305 VAC	Analog, PWM	Constant Current	Wire Leads	AC DC Converter	93 %	90 VAC	16 V	24 V
FSP Technology Inc. FSP120-ABBU3	IEC 320-C6			Cord	500 mW	1.5 m	59 in		Desktop (Class I)	6.32 A	120 W	International	ITE (Commercial)	3.86 in		0.89 in	2.54 in		98 mm	CoC Tier 2, Level VI	60950-1, 62368-1	19 V	Positive Center	90 VAC	264 VAC	70 °C	0 °C															22.5 mm	64.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources
