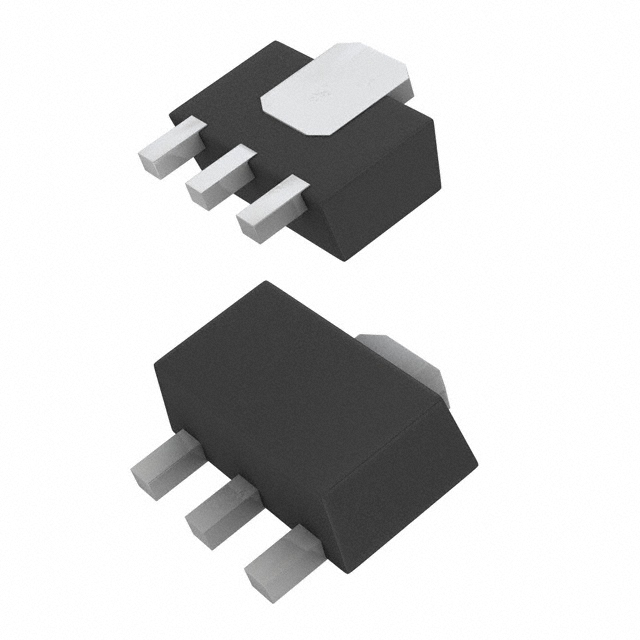

RFM01U7P(TE12L,F)
Toshiba Semiconductor and Storage
RF MOSFET 7.2V PW-MINI
Deep-Dive with AI
Search across all available documentation for this part.
RFM01U7P(TE12L,F)
Toshiba Semiconductor and Storage
RF MOSFET 7.2V PW-MINI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFM01U7P(TE12L,F) |
|---|---|
| Configuration | N-Channel |
| Current - Test | 100 mA |
| Frequency | 520 MHz |
| Gain | 10.8 dB |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Power - Output | 1.2 W |
| Supplier Device Package | PW-MINI |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Rated | 20 V |
| Voltage - Test | 7.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.22 | |
| Digi-Reel® | 1 | $ 3.22 | ||
| Tape & Reel (TR) | 1000 | $ 1.10 | ||
| 2000 | $ 1.04 | |||
Description
General part information
RFM01U7 Series
RF Mosfet 7.2 V 100 mA 520MHz 10.8dB 1.2W PW-MINI
Documents
Technical documentation and resources
No documents available
