Specification	AT49BV160S-70CU

Access Time	70 ns
Memory Depth	1 M
Memory Format	FLASH
Memory Interface (Type)	Parallel
Memory Size	16 Mb
Memory Type	Non-Volatile
Memory Width	16 bit
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C

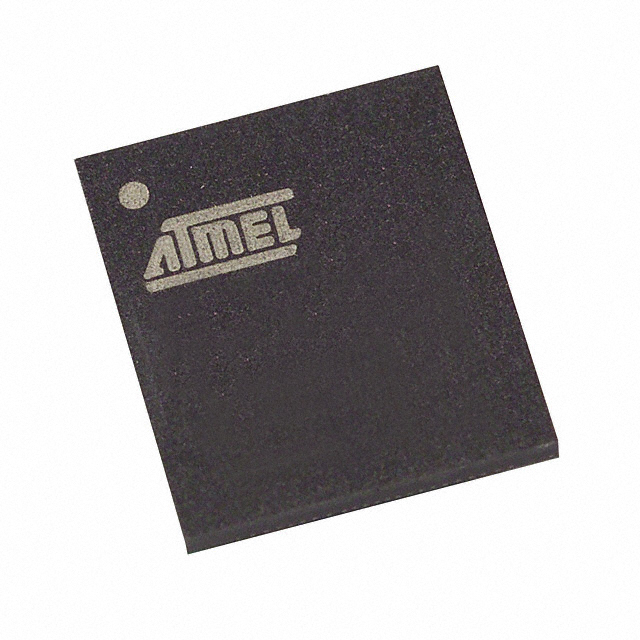

Package / Case	CSPBGA, 64-VBGA
Package Length	9 mm
Package Name	64-CBGA
Package Width	10 mm
Technology	FLASH
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	2.65 V

AT49BV160 Series

Part	Memory Format	Access Time	Mounting Type	Memory Size	Operating Temperature (Min)	Operating Temperature (Max)	Package Name	Package Width	Package Length	Memory Width (Option 1)	Memory Organization	Memory Depth (Option 2)	Memory Depth (Option 1)	Memory Width (Option 2)	Write Cycle Time - Page	Write Cycle Time - Word	Package / Case	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Memory Interface (Type)	Memory Type	Technology	Memory Depth	Memory Width
Microchip Technology AT49BV160T-70CI	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	45-CBGA	7.5 mm	6.5 mm	8 bit	1M x 16 2M x 8	1 M	2 M	16 bit	200 µs	200 µs	45-TFBGA CSBGA	2.65 V	3.3 V	Parallel	Non-Volatile	FLASH
Microchip Technology AT49BV160T-70TI	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	48-TFSOP 48-TSOP	18.4 mm	0.724 "	8 bit	1M x 16 2M x 8	1 M	2 M	16 bit	200 µs	200 µs		2.65 V	3.3 V	Parallel	Non-Volatile	FLASH
Microchip Technology AT49BV160D-70TU	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	48-TFSOP 48-TSOP	18.4 mm	0.724 "						120 µs	120 µs		2.65 V	3.6 V	Parallel	Non-Volatile	FLASH	1 M	16 bit
Microchip Technology AT49BV160C-70TU	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	48-TFSOP 48-TSOP	18.4 mm	0.724 "						120 µs	120 µs		2.65 V	3.6 V	Parallel	Non-Volatile	FLASH	1 M	16 bit
Microchip Technology AT49BV160-70CI	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	45-CBGA	7.5 mm	6.5 mm	8 bit	1M x 16 2M x 8	1 M	2 M	16 bit	200 µs	200 µs	45-TFBGA CSBGA	2.65 V	3.3 V	Parallel	Non-Volatile	FLASH
Microchip Technology AT49BV160DT-70CU	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	46-CBGA	7.5 mm	6.5 mm						120 µs	120 µs	46-VFBGA CSBGA	2.65 V	3.6 V	Parallel	Non-Volatile	FLASH	1 M	16 bit
Microchip Technology AT49BV160ST-70CU	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	64-CBGA	10 mm	9 mm								64-VBGA CSPBGA	2.65 V	3.6 V	Parallel	Non-Volatile	FLASH	1 M	16 bit
Microchip Technology AT49BV160S-70CU	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	64-CBGA	10 mm	9 mm								64-VBGA CSPBGA	2.65 V	3.6 V	Parallel	Non-Volatile	FLASH	1 M	16 bit
Microchip Technology AT49BV160CT-70TI	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	48-TFSOP 48-TSOP	18.4 mm	0.724 "						120 µs	120 µs		2.65 V	3.6 V	Parallel	Non-Volatile	FLASH	1 M	16 bit
Microchip Technology AT49BV160CT-70TU	FLASH	70 ns	Surface Mount	16 Mb	-40 °C	85 °C	48-TFSOP 48-TSOP	18.4 mm	0.724 "						120 µs	120 µs		2.65 V	3.6 V	Parallel	Non-Volatile	FLASH	1 M	16 bit
